10M16SCU169I7G - Intel

Description: FPGA - Field Programmable Gate Array non-volatile FPGA, 130 I/O, 169UBGA

Download 10M16SCU169I7G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

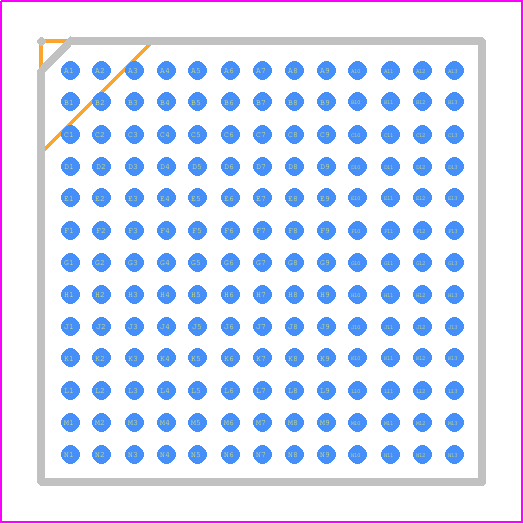

10M16SCU169I7G - Intel PCB footprint - BGA - BGA - 169-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:1.5
click to zoom
3D Models
10M16SCU169I7G - Intel  - 3D model - BGA - 169-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:1.5
click to zoom

10M16SCU169I7G Details

  • Manufacturer Part Number:

    10M16SCU169I7G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PBGA-B169

  • JESD-609 Code:

    e1

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    1000

  • Number of Inputs:

    320

  • Number of Logic Cells:

    16000

  • Number of Outputs:

    320

  • Number of Terminals:

    169

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1000 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA169,13X13,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.55 mm

  • Supply Voltage-Max:

    3.15 V

  • Supply Voltage-Min:

    2.85 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    55 nm

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11 mm

10M16SCU169I7G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 10M16SCU169I7G is -40°C to 100°C.
  • To implement a CDC in the 10M16SCU169I7G, use a synchronizer circuit or a FIFO-based CDC to ensure data integrity across clock domains.
  • The maximum frequency achievable with the 10M16SCU169I7G depends on the specific design and implementation, but Intel's Quartus II software can help estimate the maximum frequency for a given design.
  • To optimize power consumption in the 10M16SCU169I7G, use power-aware design techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS).
  • The available development tools and software for the 10M16SCU169I7G include Intel's Quartus II software, ModelSim-Altera simulation software, and the SoC Embedded Design Suite (EDS).
