Part Image

10M25SCE144A7G - Intel

Description: FPGA - Field Programmable Gate Array

Download 10M25SCE144A7G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

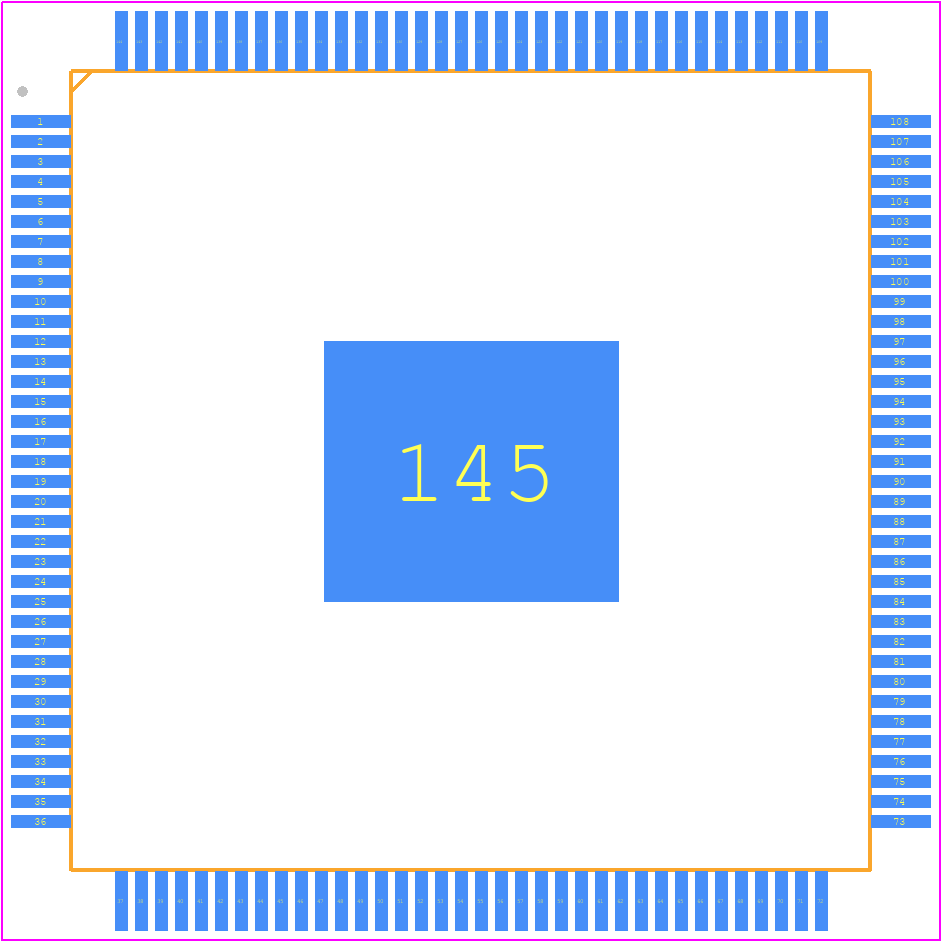

10M25SCE144A7G - Intel PCB footprint - Quad Flat Packages - Quad Flat Packages - 10M04SCE144C8G-12
click to zoom
3D Models
10M25SCE144A7G - Intel  - 3D model - Quad Flat Packages - 10M04SCE144C8G-12
click to zoom

10M25SCE144A7G Details

  • Manufacturer Part Number:

    10M25SCE144A7G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PQFP-G144

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Number of CLBs:

    1563

  • Number of Inputs:

    360

  • Number of Logic Cells:

    25000

  • Number of Outputs:

    360

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1563 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    HQFP144,.87SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.65 mm

  • Supply Voltage-Max:

    3.15 V

  • Supply Voltage-Min:

    2.85 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    55 nm

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    20 mm

10M25SCE144A7G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 10M25SCE144A7G is -40°C to 100°C.
  • To implement a CDC in the 10M25SCE144A7G, use a synchronizer circuit or a FIFO-based CDC, and ensure that the clock domains are properly isolated and synchronized.
  • The maximum frequency achievable with the 10M25SCE144A7G depends on the specific design and implementation, but Intel's Quartus II software can help estimate the maximum frequency based on the design's complexity and resource utilization.
  • To optimize power consumption in the 10M25SCE144A7G, use power-aware design techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling, and leverage Intel's PowerPlay power analysis and optimization tools.
  • The 10M25SCE144A7G can be configured using JTAG, AS, or PS mode, and can also be configured using external memory devices such as flash or SRAM.
