10M50DAF484C8G - Intel

Description: FPGA MAX 10 Family 50000 Cells 55nm Technology 1.2V 484-Pin TFBGA

Download 10M50DAF484C8G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

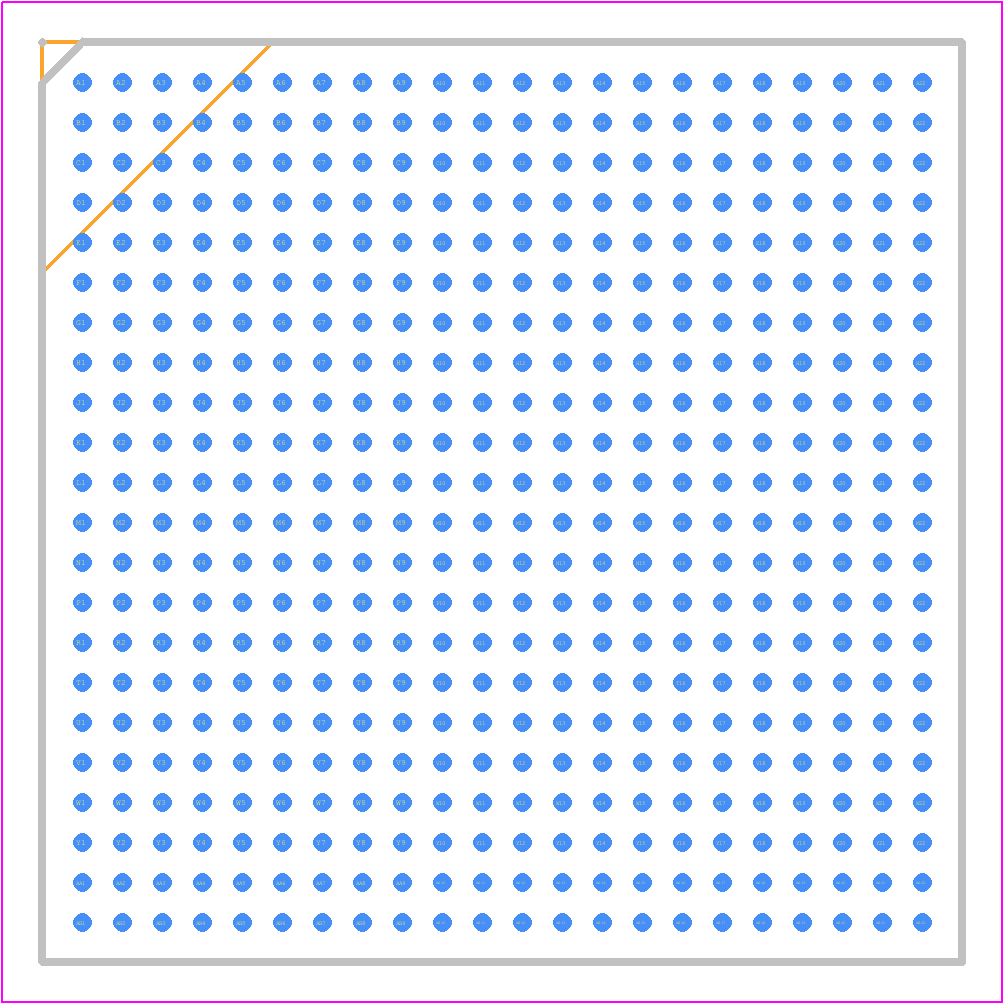

10M50DAF484C8G - Intel PCB footprint - BGA - BGA - 484-Pin FineLine Ball-Grid Array (FBGA) - Wire Bond - A:2.00
click to zoom
3D Models
10M50DAF484C8G - Intel  - 3D model - BGA - 484-Pin FineLine Ball-Grid Array (FBGA) - Wire Bond - A:2.00
click to zoom

10M50DAF484C8G Details

  • Manufacturer Part Number:

    10M50DAF484C8G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • ECCN Code:

    3A991

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    7

  • JESD-30 Code:

    S-PBGA-B484

  • JESD-609 Code:

    e1

  • Length:

    23 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    3125

  • Number of Inputs:

    500

  • Number of Logic Cells:

    50000

  • Number of Outputs:

    500

  • Number of Terminals:

    484

  • Operating Temperature-Max:

    85 °C

  • Organization:

    3125 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA484,22X22,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    55 nm

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    23 mm

10M50DAF484C8G Frequently Asked Questions (FAQs)

  • The maximum power consumption of the 10M50DAF484C8G is approximately 2.5W, but this can vary depending on the specific design and usage.
  • To implement a CDC in the 10M50DAF484C8G, you can use Intel's recommended CDC techniques, such as using synchronizers, FIFOs, or using a CDC IP core from Intel.
  • The maximum frequency of the 10M50DAF484C8G is approximately 500 MHz, but this can vary depending on the specific design and usage.
  • To optimize timing closure, use Intel's Quartus II software to analyze and optimize your design. You can also use techniques such as pipelining, retiming, and register balancing to improve timing.
  • The 10M50DAF484C8G has approximately 50,000 LEs available.
