112661 - Amphenol

Description: RF Connectors / Coaxial Connectors BNC DUAL STACK PCB RECPT BLACK

Download 112661 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
112661 - Amphenol - PCB symbol
click to zoom
PCB Footprints

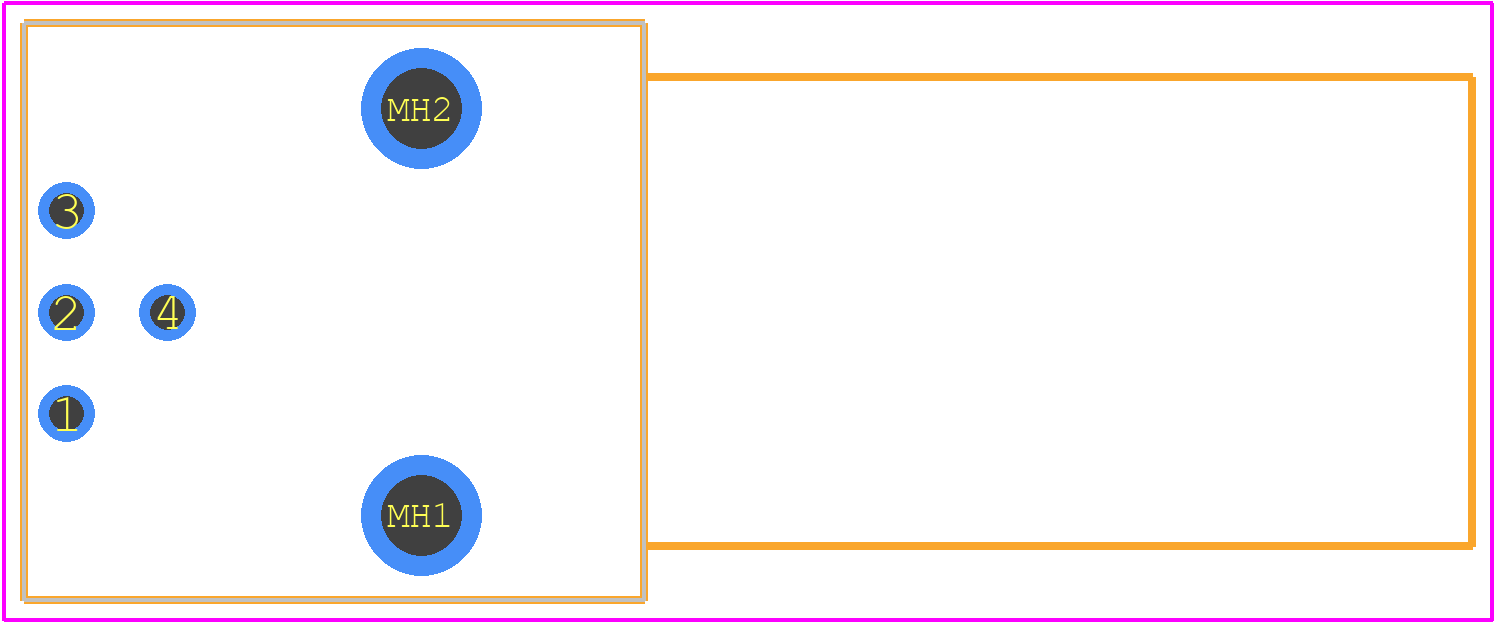

112661 - Amphenol PCB footprint - Other - Other - 112661-4
click to zoom
3D Models
112661 - Amphenol - 3D model - Other - 112661-4
click to zoom

112661 Details

  • Manufacturer Part Number:

    112661

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7.55

  • Body/Shell Style:

    RECEPTACLE

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF BNC CONNECTOR

  • Contact Finish Mating:

    NICKEL

  • Contact Finish Termination:

    NICKEL

  • Contact Gender:

    FEMALE

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYPROPYLENE

  • MIL Conformance:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Operating Frequency-Max:

    4 GHz

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Termination Type:

    SOLDER

  • VSWR:

    1.3

112661 Frequently Asked Questions (FAQs)

  • The recommended torque for mating and unmating the 112661 connector is 10-15 in-lbs (1.1-1.7 Nm). However, it's essential to consult the specific application requirements and follow the manufacturer's guidelines.
  • Yes, the 112661 connector is designed to withstand high-vibration environments. It features a ruggedized design and a secure locking mechanism to ensure reliable connections in demanding applications.
  • The 112661 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's crucial to consult the specific environmental requirements and follow the manufacturer's guidelines for sealing and protection.
  • The 112661 connector is rated for a minimum of 500 mating cycles. However, the actual number of mating cycles may vary depending on the application, usage, and environmental conditions.
  • The 112661 connector is designed to be compatible with other Amphenol connectors and accessories. However, compatibility with competitors' products may vary. It's essential to consult the manufacturer's guidelines and perform thorough testing before using the connector with other products.
