112704 footprint, schematic symbol and 3D model by Amphenol

Symbol

click to zoom

PCB Footprints

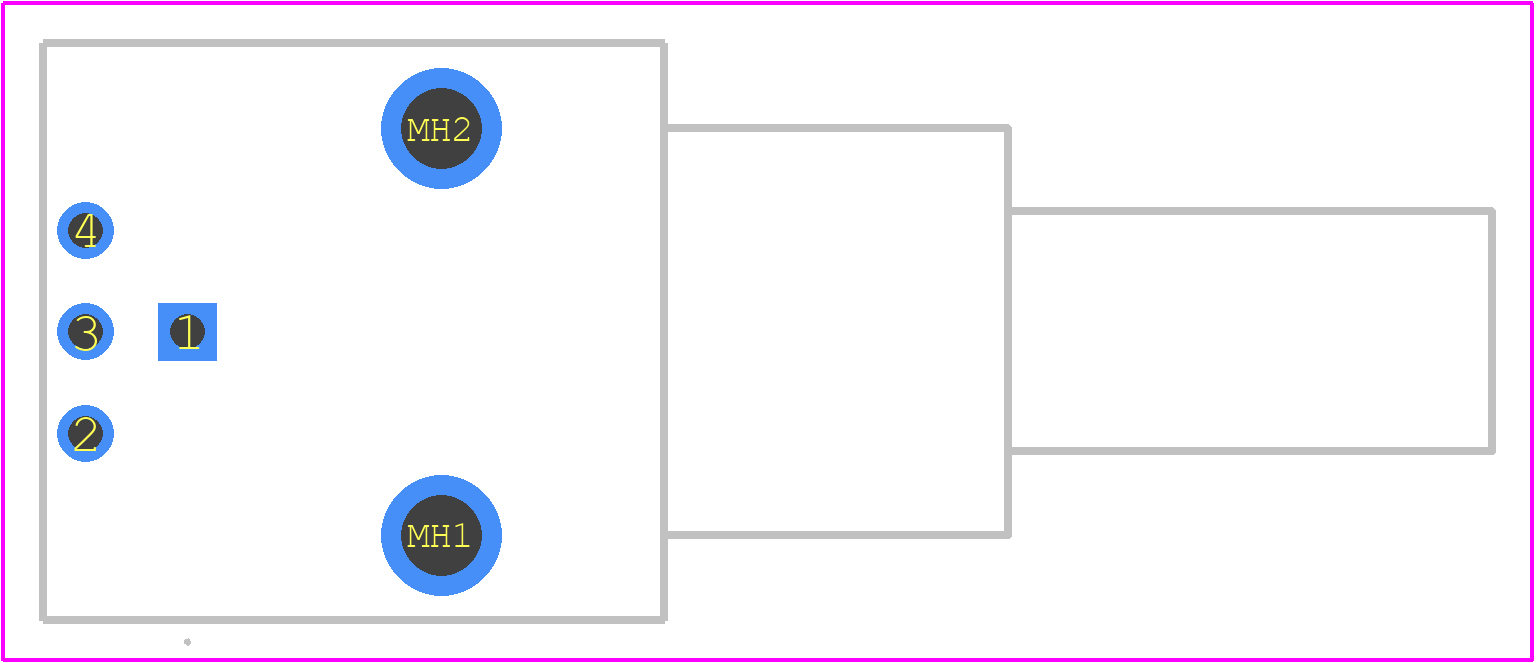

112704 - Amphenol PCB footprint - Other - Other - 112704-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 112704
Part Number 112704
Manufacturer Amphenol
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - 112704-2
Released Date Sep 21, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

112704 Details

Manufacturer Part Number:
112704
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Factory Lead Time:
10 Weeks
Manufacturer:
Amphenol Corporation
Body/Shell Style:
RECEPTACLE
Characteristic Impedance:
50 Ω
Connector Type:
RF BNC CONNECTOR
Contact Finish Mating:
TIN
Contact Finish Termination:
TIN
Contact Gender:
FEMALE
Coupling Type:
BAYONET
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYPROPYLENE
JESD-609 Code:
e3
MIL Conformance:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Panel Mount:
NO
Termination Type:
SOLDER

Trust Checks

Community Provided

System Verified

Community Approved

112704 Overview

Use the download button to access the 112704 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 11270, or try a keyword search, such as Terminals and Terminal Blocks
