14230R-450 - Adesto Technologies

Description: Network Controller & Processor ICs FT 3150 - P20 Smart Transceiver

Download 14230R-450 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

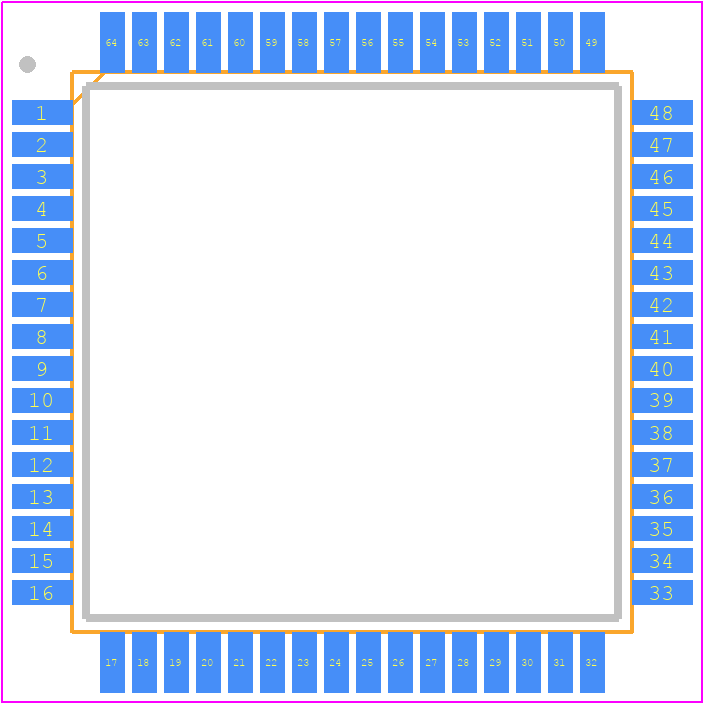

14230R-450 - Adesto Technologies PCB footprint - Quad Flat Packages - Quad Flat Packages - 64 lead TQFP
click to zoom
3D Models
14230R-450 - Adesto Technologies  - 3D model - Quad Flat Packages - 64 lead TQFP
click to zoom

14230R-450 Details

  • Manufacturer Part Number:

    14230R-450

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    TQFP-64

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Adesto Technologies Corporation

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    MANCHESTER ENCODER/DECODER

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

14230R-450 Frequently Asked Questions (FAQs)

  • Adesto recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A minimum of 2oz copper thickness is recommended for optimal thermal performance.
  • Adesto provides a Secure Boot SDK and guidelines for secure firmware updates. Implementing secure boot involves generating a secure boot image, using a secure boot loader, and configuring the device for secure boot mode. For secure firmware updates, use a secure communication protocol and encrypt the firmware image.
  • Adesto recommends a power-on sequence of VDDIO, then VDD, and finally VDDQ. Use a low-dropout regulator (LDO) for voltage regulation, and ensure a minimum of 1.8V for VDDIO and 1.2V for VDD. Decouple the power pins with 0.1uF and 10uF capacitors.
  • To optimize for low power, use the device's power-saving modes (e.g., sleep mode), reduce clock frequencies, and minimize I/O activity. Also, consider using a low-power oscillator and optimizing the system's power management scheme.
  • Adesto recommends following the IEC 61967 standard for EMC and EMI. Use a shielded enclosure, minimize trace lengths, and use a common-mode choke to reduce EMI. Ensure a minimum of 10mm clearance between the device and other components.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

14230R-450 Overview

Use the download button to access the 14230R-450 schematic symbol, PCB footprint, and 3D model.
