14450R-500 - Renesas Electronics

Description: The FT 6050 Smart Transceiver system on chip (SoC) combines a high-performance Neuron® core with a Free Topology transceiver on a single chip to facilitate the design of Industrial Internet of Things (IIoT) devices and consolidate smart control networks. The FT 6050 is a key product in the IzoT® platform — the most comprehensive and open control networking platform for the IIoT. The device natively supports both BACnet and LON communications on the same network and offers compatibility with the large instal

Download 14450R-500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

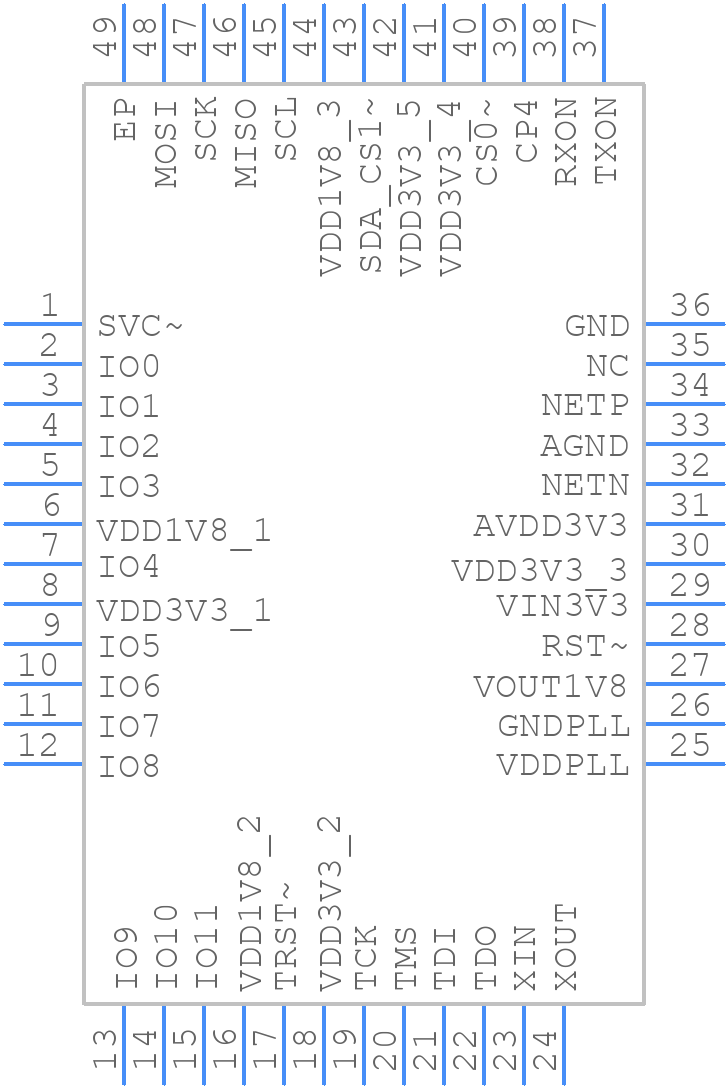

14450R-500 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
14450R-500 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 14285R-100 -49pin
click to zoom

14450R-500 Details

  • Manufacturer Part Number:

    14450R-500

  • Brand Name:

    Renesas

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    SOC

14450R-500 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the IC.
  • Implement a thermal management strategy, such as heat sinks, thermal interfaces, or fans. Ensure the device is operated within the specified temperature range (–40°C to 125°C).
  • Use 10uF to 22uF ceramic capacitors with X7R or X5R dielectrics, placed as close as possible to the power pins. Add additional capacitors (e.g., 100nF) for high-frequency decoupling.
  • Implement ESD protection using TVS diodes or ESD arrays on the input/output lines. Ensure the protection devices are rated for the maximum voltage and current of the application.
  • Set the internal voltage regulator to 1.2V or 1.35V, depending on the application's power requirements. Ensure the input voltage is within the specified range (2.7V to 5.5V).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
