- Part Number 152-3409
- Manufacturer Kobiconn
- Pin Count 11
- Part Category Connector
- Package Category Other

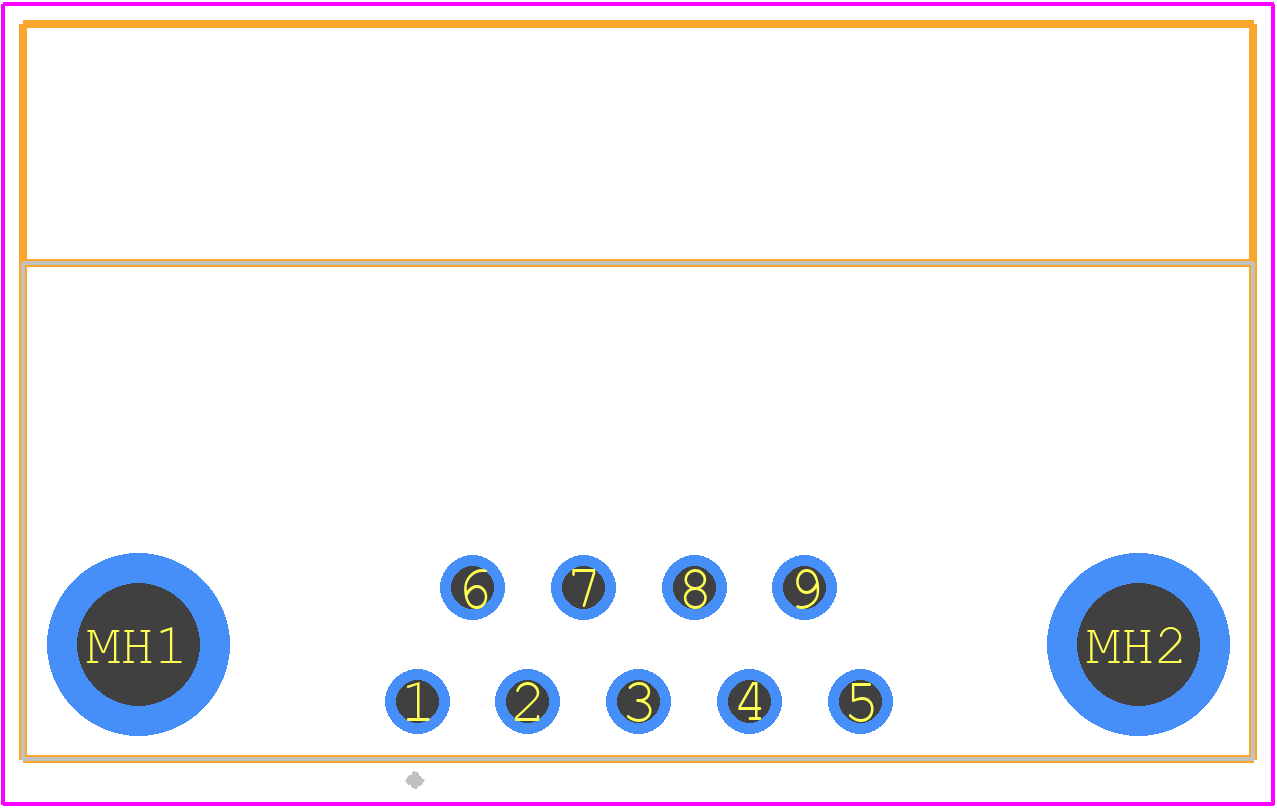

- Footprint Name Other - 152-3409-1
- Released Date Dec 31, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
152-3409 Details
-
Manufacturer Part Number:
152-3409
-
Part Life Cycle Code:
Contact Manufacturer
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Kobiconn
-
Body/Shell Style:
RECEPTACLE
-
Connector Type:
D SUBMINIATURE CONNECTOR
-
Contact Finish Mating:
GOLD
-
Contact Finish Termination:
GOLD
-
Contact Gender:
FEMALE
-
Contact Material:
PHOSPHOR BRONZE
152-3409 Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screws on the 152-3409 connector.
-
Yes, the 152-3409 connector is suitable for outdoor use, but it's recommended to use a waterproofing sealant or potting compound to ensure IP67 rating.
-
Yes, the 152-3409 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration applications.
-
The maximum operating temperature range for the 152-3409 connector is -40°C to 125°C (-40°F to 257°F).
-
The 152-3409 connector is resistant to most industrial chemicals, but it's recommended to consult the datasheet or contact Kobiconn for specific chemical compatibility information.
Trust Checks
Expert Contribution
System Verified
Community Approved
152-3409 Overview

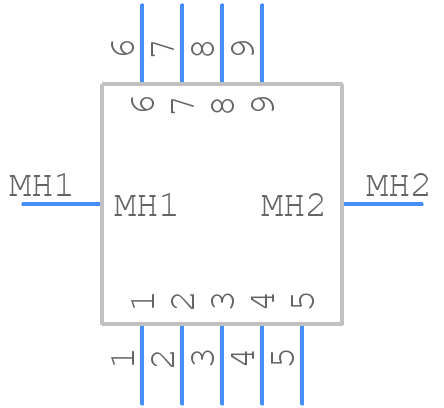

Use the download button to access the 152-3409 schematic symbol, PCB footprint, and 3D model.
