1532259-4 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

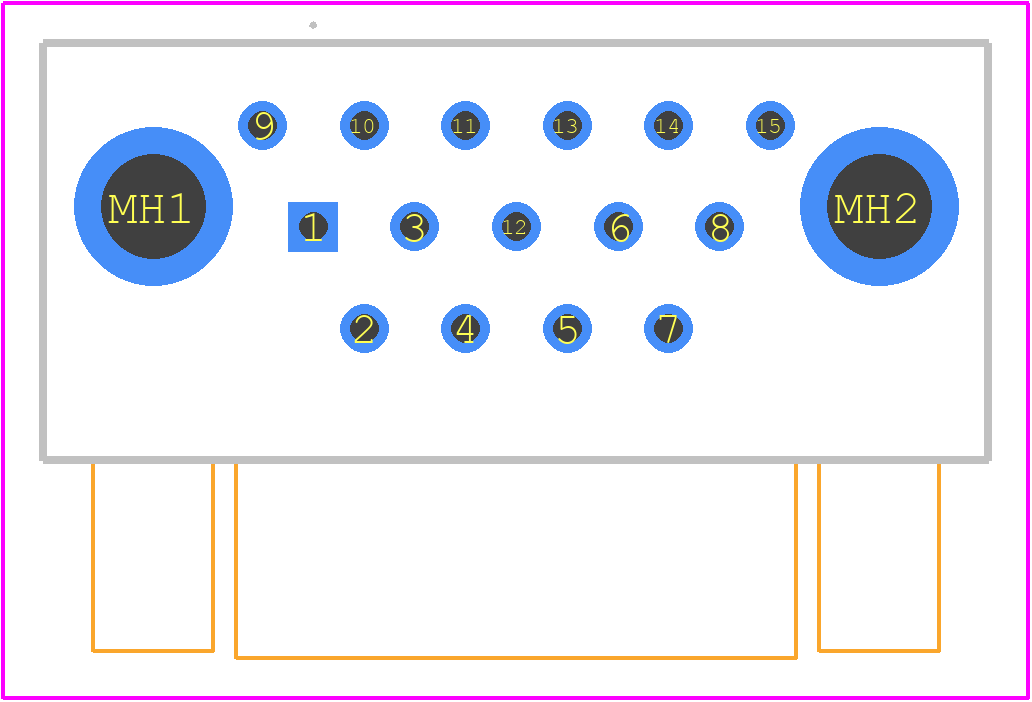

PCB Footprints

1532259-4 - TE Connectivity PCB footprint - Other - Other - 1532259-4-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1532259-4
Part Number 1532259-4
Manufacturer TE Connectivity
Pin Count 17
Part Category Connector
Package Category Other
Footprint Name Other - 1532259-4-3
Released Date Aug 16, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

1532259-4 Details

Manufacturer Part Number:
1532259-4
Brand Name:
Microdot
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
TE Connectivity
YTEOL:
8.57
Additional Feature:
STANDARD: MIL-DTL-83513
Body/Shell Style:
RECEPTACLE
Cable Types:
SOLID
Connector Type:
D MICROMINIATURE CONNECTOR
Contact Design:
PREASSEM CONN
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
MIL Conformance:
NO
Mains Connector Rating:
115/230VAC
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Option:
GENERAL PURPOSE
Panel Mount:
NO
Shell Finish:
NICKEL
Shell Material:
ALUMINUM ALLOY
Shell Size:
B
Terminal Length:
0.109 inch
Termination Type:
SOLDER
Total Number of Contacts:
15

1532259-4 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
Yes, the 1532259-4 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, aerospace, and industrial equipment.
The 1532259-4 connector is designed to operate in harsh environments. It has a temperature range of -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to follow the recommended storage and operating conditions to ensure optimal performance.
The 1532259-4 connector has a mating cycle life of at least 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
Yes, the 1532259-4 connector is part of the TE Connectivity's Modular Plug (MP) series, which is designed to be compatible with other TE Connectivity products, such as the Modular Jack (MJ) series. This allows for easy integration and flexibility in your design.

Trust Checks

Community Provided

System Verified

Community Approved

1532259-4 Overview

Use the download button to access the 1532259-4 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 15322, or try a keyword search, such as D Type Connectors
