1586037-8 - TE Connectivity

Description: Configuration Features: Number of Power Positions 8 | PCB Mount Orientation Vertical | Number of Rows 2 | Number of Positions 8 | Contact Features: Contact Layout Matrix | Contact Current Rating (Max) 9 AMP | Contact Layout Inline | Contact Mating Area Plating Material Thickness 80 – 200 MICIN | Contact Mating Area Plating Material Tin | Contact Type Pin | Contact Retention Within Housing Without | PCB Contact Termination Area Plating Material Tin | Contact Mating Area Plating Material Thickness 2.03 –

Download 1586037-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1586037-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

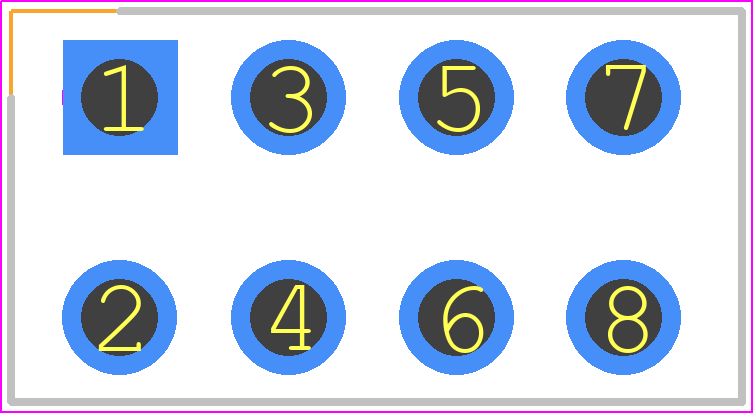

1586037-8 - TE Connectivity PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 1586037-8
click to zoom
3D Models
1586037-8 - TE Connectivity - 3D model - Header, Shrouded - Straight PTH Box - 1586037-8
click to zoom

1586037-8 Details

  • Manufacturer Part Number:

    1586037-8

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    15 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

1586037-8 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 1586037-8 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and aerospace applications.
  • The operating temperature range for the 1586037-8 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 1586037-8 connector is designed for automated assembly and can be easily integrated into high-volume manufacturing processes.
  • The 1586037-8 connector has a mating cycle life of 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
