16-002143 - CONEC

Description: D-Sub Contacts 9P SOLDER PIN STRT W/SNP LOCK SPCR CLIP

Download 16-002143 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

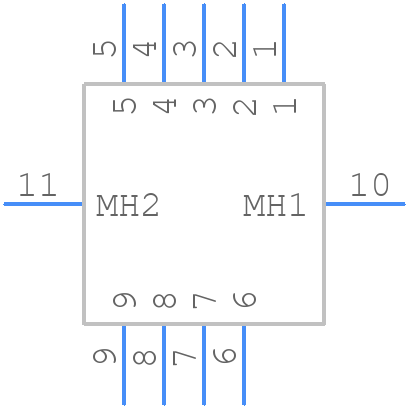

Symbol
16-002143 - CONEC - PCB symbol
click to zoom

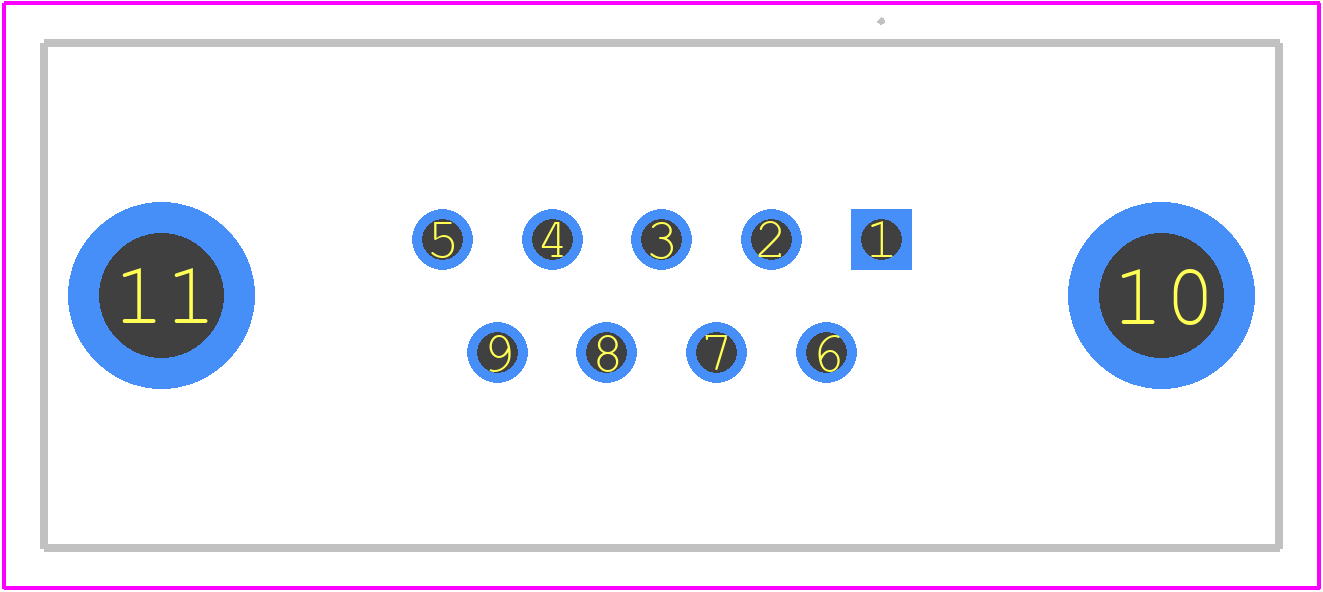

PCB Footprints
16-002143 - CONEC PCB footprint - Other - Other - 16-002143-4
click to zoom
3D Models
16-002143 - CONEC - 3D model - Other - 16-002143-4
click to zoom

16-002143 Details

  • Manufacturer Part Number:

    16-002143

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Conec Corporation

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

16-002143 Overview

Use the download button to access the 16-002143 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16-00, or try a keyword search, such as D Type Connectors
