1606Q16-U - THAT CORPORATION

Description: Audio Amplifiers Balanced Audio Line Driver IC

Download 1606Q16-U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

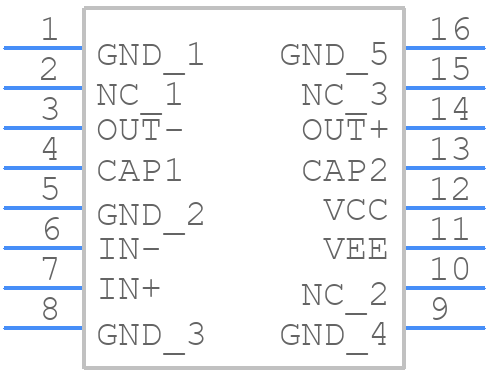

1606Q16-U - THAT CORPORATION - PCB symbol
click to zoom
PCB Footprints
1606Q16-U - THAT CORPORATION PCB footprint - Small Outline Packages - Small Outline Packages - QSOP-16
click to zoom
3D Models
1606Q16-U - THAT CORPORATION - 3D model - Small Outline Packages - QSOP-16
click to zoom

1606Q16-U Details

  • Manufacturer Part Number:

    1606Q16-U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    THAT Corporation

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • JESD-30 Code:

    R-PDSO-G16

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

1606Q16-U Frequently Asked Questions (FAQs)

  • A 10uF capacitor in parallel with a 100nF capacitor, placed as close to the IC as possible, is recommended for power supply decoupling.
  • To optimize gain structure, set the gain of the 1606Q16-U to the minimum required for your application, and use external resistors to adjust the gain of the preceding stage. This will help minimize noise and distortion.
  • The maximum input signal level that the 1606Q16-U can handle is approximately 2.5Vrms, assuming a 5V power supply. Exceeding this level may result in distortion and/or clipping.
  • Yes, the 1606Q16-U can be used in a differential input configuration. This can help to improve common-mode rejection and reduce noise. Consult the datasheet for specific configuration guidelines.
  • Ensure the power supply voltage is within the recommended range (4.5V to 5.5V), and the operating temperature is within the recommended range (-40°C to +85°C). Also, ensure that the input signals are within the recommended voltage range.
