164C21009X - CONEC

Description: D-Sub High Density Connectors 15POS F HD R/A.350 PLST BCKT/LCK/CLIPS

Download 164C21009X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
164C21009X - CONEC - PCB symbol
click to zoom
PCB Footprints

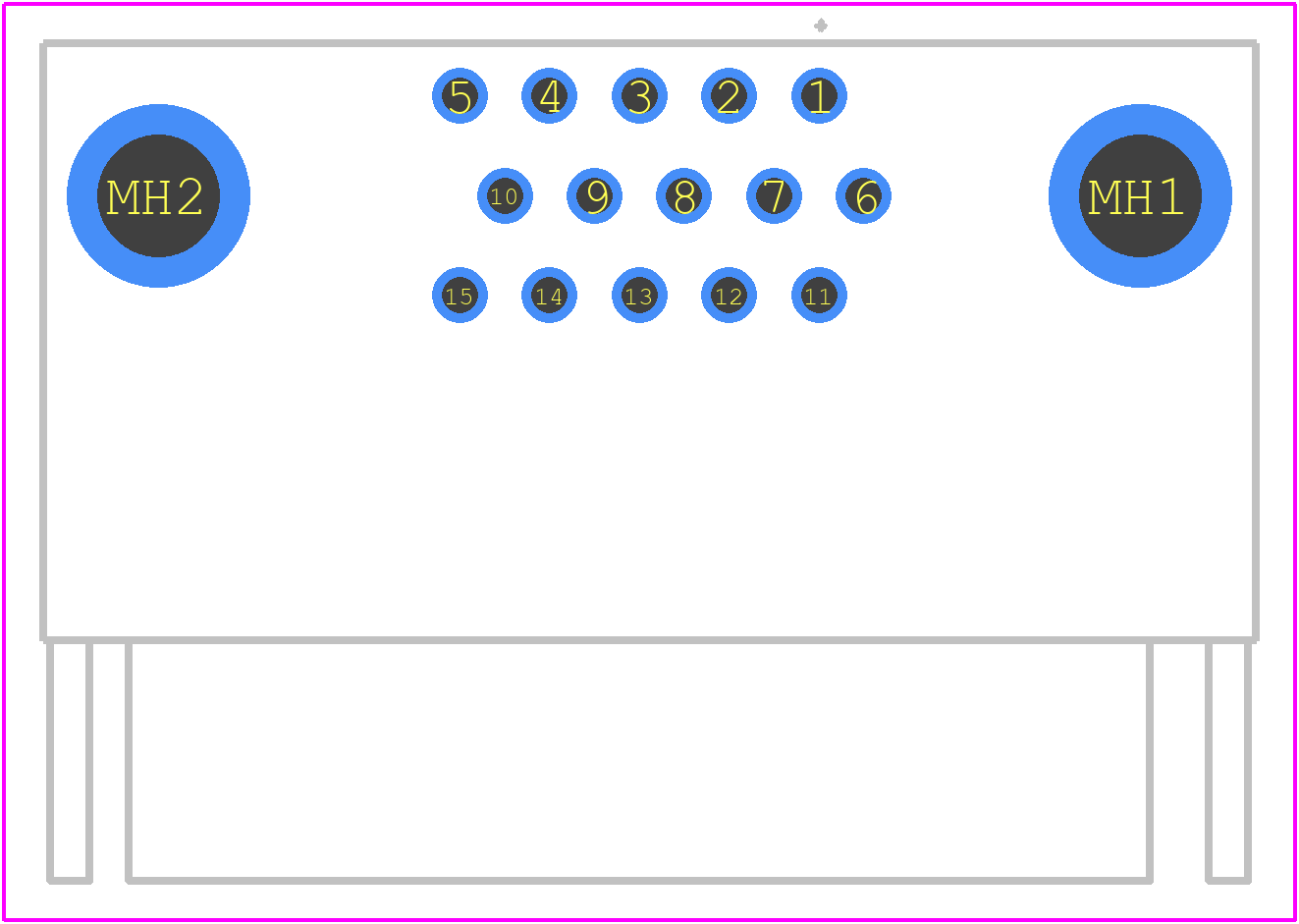

164C21009X - CONEC PCB footprint - Other - Other - 164C21009X-1
click to zoom

164C21009X Details

  • Manufacturer Part Number:

    164C21009X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Conec Corporation

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Material:

    COPPER ALLOY

  • JESD-609 Code:

    e4
