Part Image

1848135 - Phoenix Contact

Description: PSC 1,5/ 5-M-PE - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range: PSC 1,5/..-M, pitch: 3.5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: PSC 1,5, Electrical properties: shielded, Pin con

Download 1848135 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1848135 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

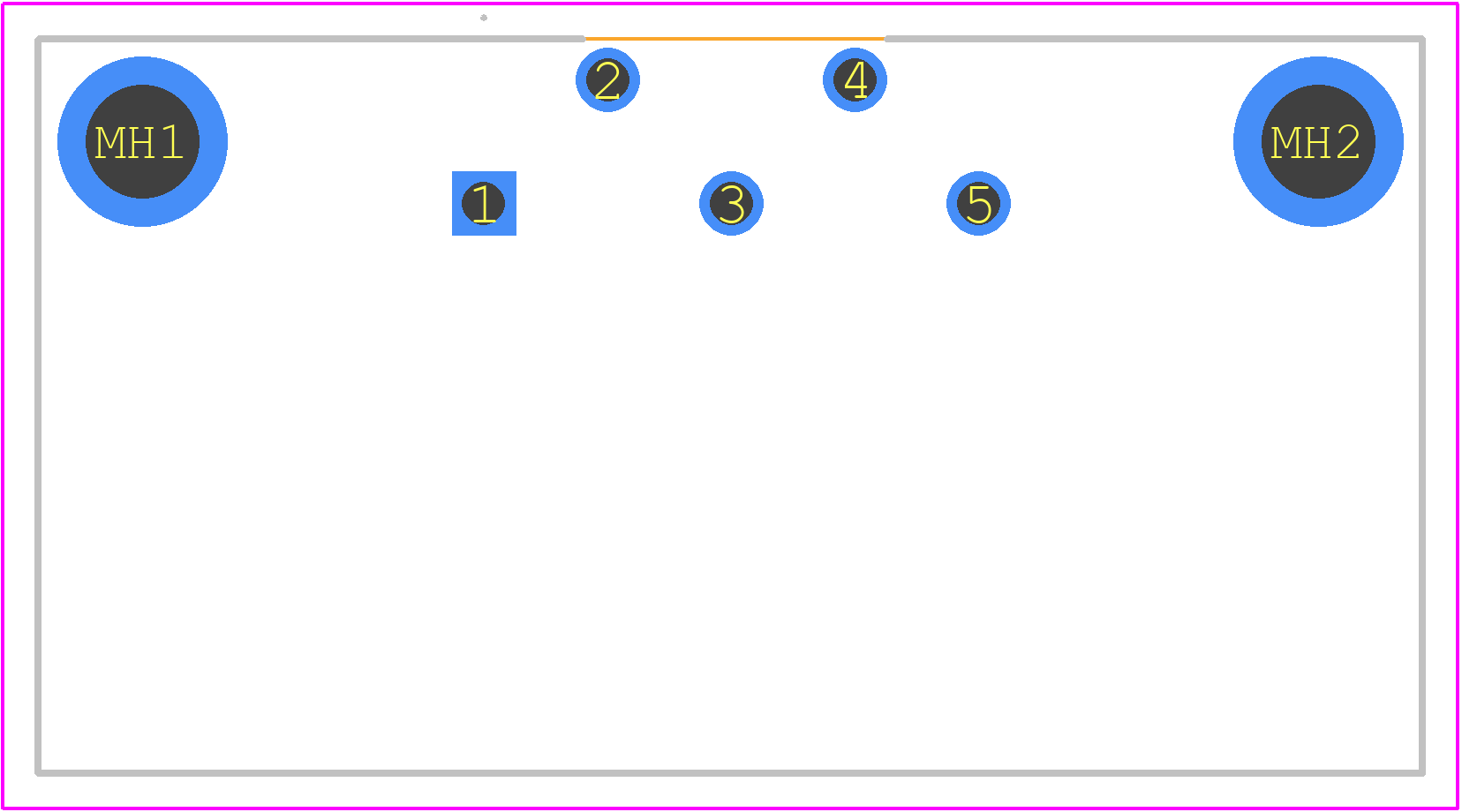

1848135 - Phoenix Contact PCB footprint - Other - Other - 1848135
click to zoom
3D Models
1848135 - Phoenix Contact - 3D model - Other - 1848135
click to zoom

1848135 Details

  • Manufacturer Part Number:

    1848135

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8.3

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Size:

    2/A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

  • UL Flammability Code:

    94V-0

1848135 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 1.2 Nm (5.3 lbf·in to 10.6 lbf·in).
  • Yes, the 1848135 is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 61373 Cat. 1 Class B.
  • Yes, the 1848135 is suitable for outdoor use. It has a IP67 rating, which means it is protected against dust and water ingress.
  • While the datasheet specifies wire sizes from 0.5 mm² to 2.5 mm², it's possible to use smaller or larger wire sizes with proper derating. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure reliable connections.
  • The 1848135 is designed to be compatible with other Phoenix Contact products, but compatibility with other manufacturers' products is not guaranteed. It's recommended to verify compatibility before using the connector with non-Phoenix Contact products.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1848135 Overview

Use the download button to access the 1848135 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18481, or try a keyword search, such as D Type Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
