1ST280EU2F50E2VG - Intel

Description: Stratix® 10 TX Field Programmable Gate Array (FPGA) IC 440 2800000 2397-BBGA, FCBGA

Download 1ST280EU2F50E2VG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

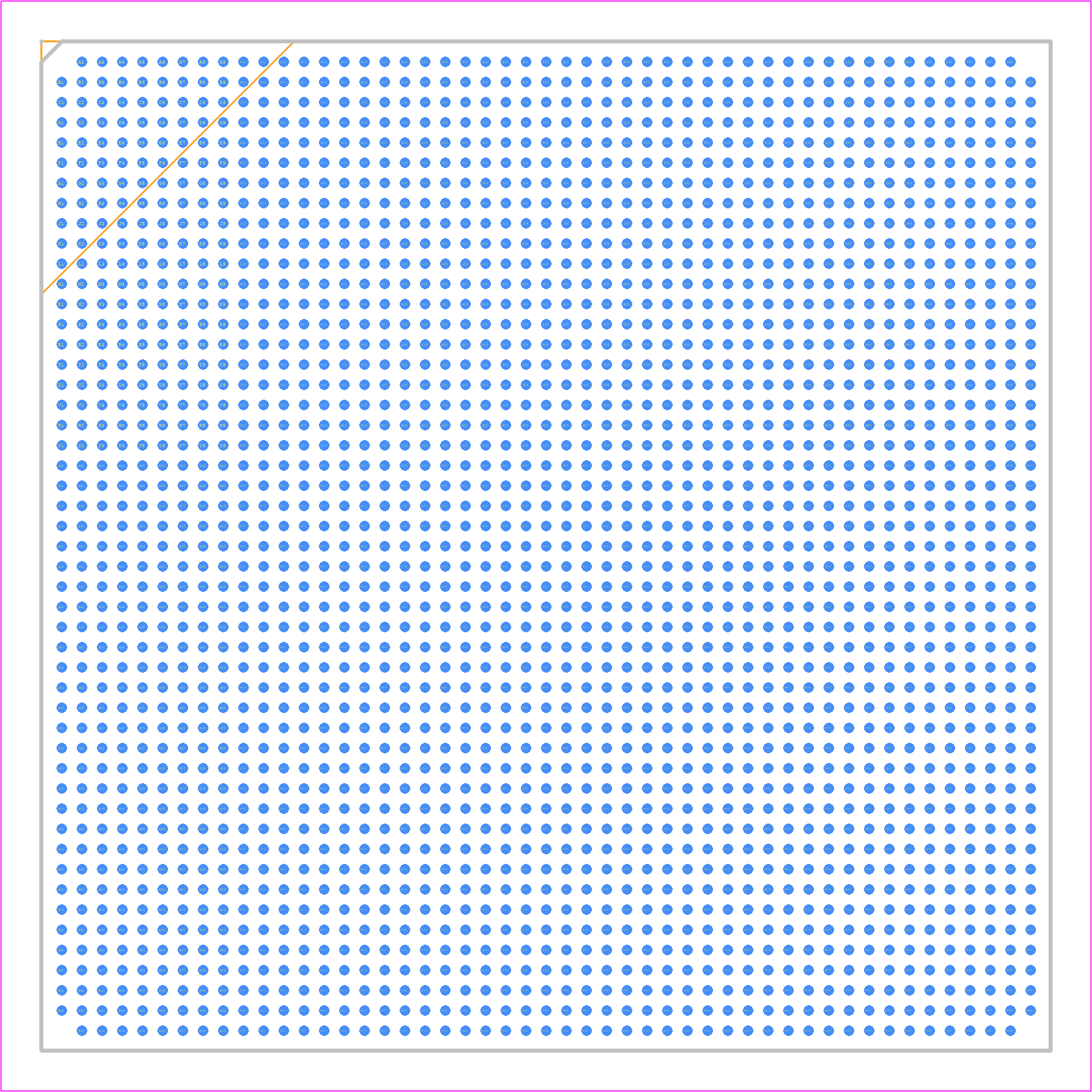

1ST280EU2F50E2VG - Intel PCB footprint - BGA - BGA - 2397-Ball FBGA
click to zoom
3D Models
1ST280EU2F50E2VG - Intel  - 3D model - BGA - 2397-Ball FBGA
click to zoom

1ST280EU2F50E2VG Details

  • Manufacturer Part Number:

    1ST280EU2F50E2VG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    FBGA-2397

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    10

  • JESD-30 Code:

    S-PBGA-B2397

  • JESD-609 Code:

    e1

  • Length:

    50 mm

  • Number of CLBs:

    350000

  • Number of Inputs:

    440

  • Number of Logic Cells:

    2800000

  • Number of Outputs:

    440

  • Number of Terminals:

    2397

  • Operating Temperature-Max:

    100 °C

  • Organization:

    350000 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA2397,49X49,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    3.881 mm

  • Supply Voltage-Max:

    0.97 V

  • Supply Voltage-Min:

    0.77 V

  • Supply Voltage-Nom:

    0.8 V

  • Surface Mount:

    YES

  • Technology:

    14 nm

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    50 mm

1ST280EU2F50E2VG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 1ST280EU2F50E2VG is -40°C to 100°C, as specified in the datasheet.
  • To ensure signal integrity, it is recommended to follow the PCB layout guidelines provided in the datasheet, use controlled impedance traces, and add decoupling capacitors as needed.
  • The recommended power-up sequence for the 1ST280EU2F50E2VG is to power up the VCCIO and VCC cores simultaneously, followed by the VREF and VTT supplies.
  • Thermal management for the 1ST280EU2F50E2VG can be handled through the use of heat sinks, thermal interfaces, and airflow management. The datasheet provides thermal resistance values to aid in thermal design.
  • The 1ST280EU2F50E2VG has built-in ESD protection, but it is still recommended to follow standard ESD handling procedures during assembly and testing to prevent damage.
