2007637-7 - TE Connectivity

Description: Configuration Features: Port Matrix Configuration 2 x 2 | Number of Positions 80 | Number of Ports 4 | Contact Features: Tail Plating Material Tin | Contact Mating Area Plating Material Thickness .76 MICM | Contact Mating Area Plating Material Gold or Gold Flash over Palladium Nickel | Dimensions: PCB Thickness (Recommended) .059 INCH | PCB Thickness (Recommended) 1.5 MM | Electrical Characteristics: Data Rate (Max) 16 GBS | Housing Features: Centerline (Pitch) .8 MM | Cage Material Nickel Silver | Centerli

Download 2007637-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2007637-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

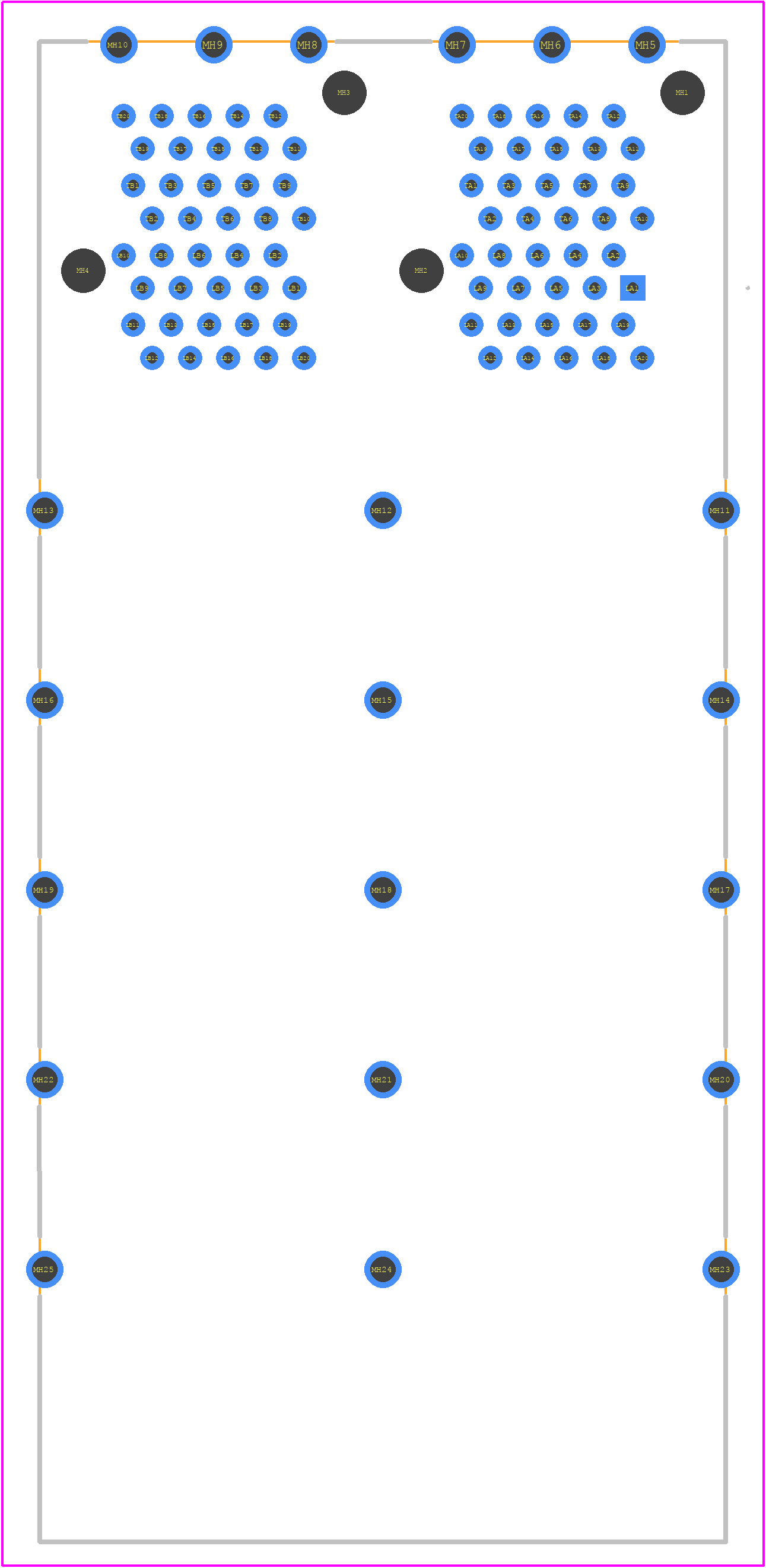

2007637-7 - TE Connectivity PCB footprint - Other - Other - 2007637-7-3
click to zoom
3D Models
2007637-7 - TE Connectivity - 3D model - Other - 2007637-7-3
click to zoom

2007637-7 Details

  • Manufacturer Part Number:

    2007637-7

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.39

  • Connector Type:

    SFP CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Reference Standard:

    UL

  • Terminal Length:

    0.118 inch

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    80

  • UL Flammability Code:

    94V-0

2007637-7 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2007637-7 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 61373 Cat. 2. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 2007637-7 connector has a rating of IP67, which means it can withstand temporary immersion in water (up to 1m for 30 minutes) and is protected against dust. However, it's not designed for continuous outdoor exposure. If you need a connector for outdoor use, consider using a connector with a higher IP rating or additional environmental protection.
  • The 2007637-7 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this range to maintain its performance and reliability.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with some limitations. Consult with TE Connectivity or a qualified engineer to determine the feasibility of using alternative wire sizes.
