2181CL08-U - THAT CORPORATION

Description: Audio Amplifiers Trimmable VCA SIP-8

Download 2181CL08-U Model

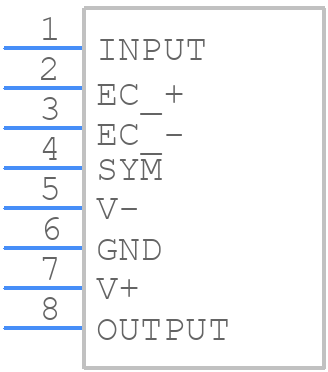

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
2181CL08-U - THAT CORPORATION PCB footprint - Other - Other - 2181CL08-U-2
click to zoom
3D Models
2181CL08-U - THAT CORPORATION  - 3D model - Other - 2181CL08-U-2
click to zoom

2181CL08-U Details

  • Manufacturer Part Number:

    2181CL08-U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SIP-8

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    THAT Corporation

  • Additional Feature:

    SEATED HGT-CALCULATED

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PSIP-T8

  • JESD-609 Code:

    e4

  • Length:

    19.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    7.2 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Width:

    2.8 mm

2181CL08-U Frequently Asked Questions (FAQs)

  • A good PCB layout for the 2181CL08-U involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. THAT Corporation provides a recommended PCB layout in their application notes.
  • To ensure proper biasing, follow the recommended biasing scheme in the datasheet, which includes using a voltage divider to set the bias voltage and a decoupling capacitor to filter out noise. Additionally, ensure that the bias voltage is within the recommended range of 4.5V to 5.5V.
  • The maximum power dissipation of the 2181CL08-U is not explicitly stated in the datasheet. However, based on the device's thermal characteristics, it's recommended to keep the junction temperature below 150°C. A safe estimate for power dissipation would be around 500mW to 750mW, depending on the application and operating conditions.
  • The 2181CL08-U is rated for operation up to 85°C, but it's not recommended for use in high-temperature environments above 100°C. If your application requires operation above 85°C, consider using a different device or implementing thermal management techniques to keep the device within its recommended operating temperature range.
  • To troubleshoot issues with the 2181CL08-U, start by verifying the PCB layout and biasing scheme. Check for proper decoupling, ensure that the input and output traces are short and symmetrical, and verify that the device is operating within its recommended voltage and temperature ranges. If issues persist, consult the datasheet and application notes for troubleshooting guidelines or contact THAT Corporation's technical support.
