2200LL-470-H-RC - Bourns

Description: 47 µH Unshielded Toroidal Inductor 10.3 A , 12mOhm Max Radial, Horizontal (Open) , 1 kHz , -55°C ~ 125°C

Download 2200LL-470-H-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

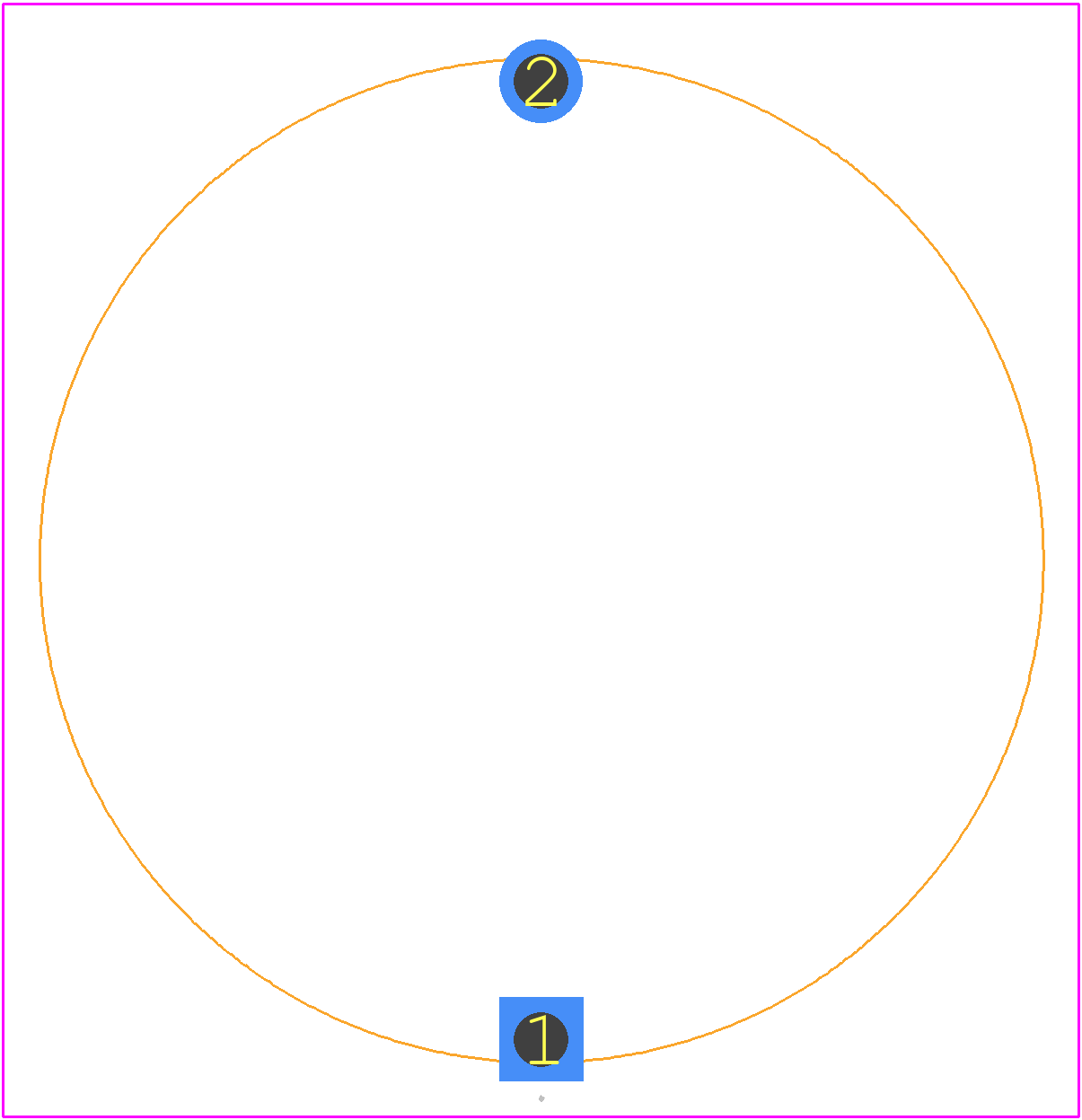

2200LL-470-H-RC - Bourns PCB footprint - Other - Other - 27.94mm x 13.97mm
click to zoom
3D Models
2200LL-470-H-RC - Bourns  - 3D model - Other - 27.94mm x 13.97mm
click to zoom

2200LL-470-H-RC Details

  • Manufacturer Part Number:

    2200LL-470-H-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7

  • Construction:

    Hortizontal Mount

  • DC Resistance:

    0.012 Ω

  • Inductance-Nom (L):

    47 µH

  • Inductor Application:

    HIGH CURRENT INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Diameter:

    1.3462 mm

  • Lead Length:

    12.7 mm

  • Lead Spacing:

    26.67 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    27.94 mm

  • Package Length:

    13.97 mm

  • Package Style:

    Toroidal

  • Rated Current-Max:

    10.3 A

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    15%
