228TTA100M - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - Axial Leaded 2200uF 100V 20%

Download 228TTA100M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
228TTA100M - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

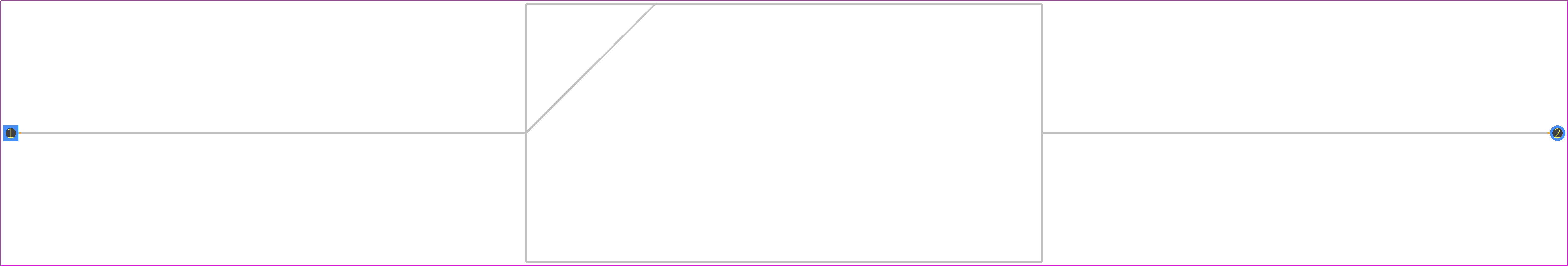

228TTA100M - Cornell Dubilier PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 228TTA100M(25*51)
click to zoom
3D Models
228TTA100M - Cornell Dubilier - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 228TTA100M(25*51)
click to zoom

228TTA100M Details

  • Manufacturer Part Number:

    228TTA100M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Cornell Dubilier Electronics Inc

  • YTEOL:

    6

  • Capacitance:

    2200 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    105.5 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    6.6 mA

  • Length:

    51 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    2560 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.14

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    WIRE

228TTA100M Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum dwell time of 10 seconds. It's essential to follow the soldering profile recommended by Cornell Dubilier to ensure the capacitor's reliability and performance.
  • Yes, the 228TTA100M is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which ensures its performance and reliability in demanding applications.
  • The ESR of the 228TTA100M is not explicitly stated in the datasheet, but it's typically around 0.02 ohms at 100 kHz. This value can be obtained by contacting Cornell Dubilier's technical support or through additional documentation.
  • Yes, the 228TTA100M is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally conscious designs.
  • The recommended storage condition for the 228TTA100M is in a dry, cool place with a temperature range of 10°C to 30°C (50°F to 86°F) and relative humidity below 70%. This helps maintain the capacitor's performance and shelf life.
