229TTA016M footprint, schematic symbol and 3D model by Cornell Dubilier

Symbol

click to zoom

PCB Footprints

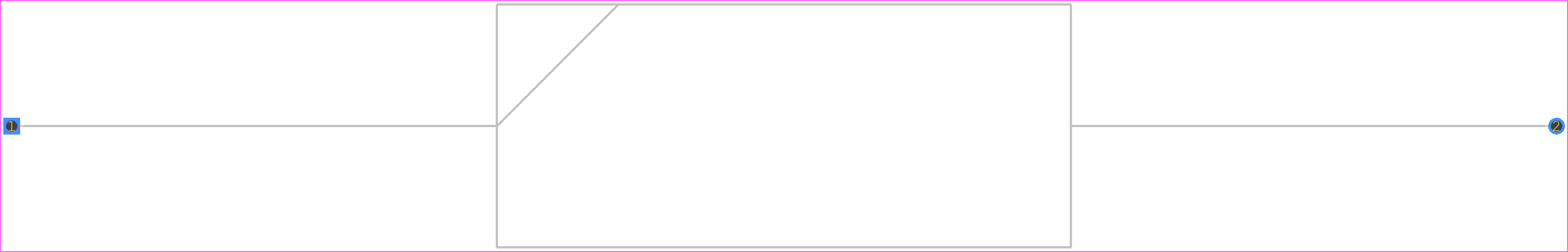

229TTA016M - Cornell Dubilier PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 229TTA016M

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 229TTA016M
Part Number 229TTA016M
Manufacturer Cornell Dubilier
Pin Count 2
Part Category Capacitor Polarised
Package Category Capacitors, Polarized Axial Diameter Horizontal Mounting
Footprint Name Capacitors, Polarized Axial Diameter Horizontal Mounting - 229TTA016M
Released Date Oct 19, 2023
Last Modified Date Oct 20, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

229TTA016M Details

Manufacturer Part Number:
229TTA016M
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
AXIAL LEADED
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8532.22.00.40
Manufacturer:
Cornell Dubilier Electronics Inc
YTEOL:
6
Capacitance:
22000 µF
Capacitor Type:
ALUMINUM ELECTROLYTIC CAPACITOR
Diameter:
22 mm
Dielectric Material:
ALUMINUM (WET)
ESR:
46.7 mΩ
JESD-609 Code:
e3
Leakage Current:
10.56 mA
Length:
51 mm
Mounting Feature:
THROUGH HOLE MOUNT
Negative Tolerance:
20%
Number of Terminals:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Shape:
TUBULAR PACKAGE
Package Style:
Axial
Polarity:
POLARIZED
Positive Tolerance:
20%
Rated (DC) Voltage (URdc):
16 V
Ripple Current:
3600 mA
Surface Mount:
NO
Tan Delta:
0.62
Terminal Finish:
MATTE TIN
Terminal Shape:
WIRE

229TTA016M Frequently Asked Questions (FAQs)

The recommended soldering temperature is 260°C (500°F) with a maximum dwell time of 10 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the capacitor.
Yes, the 229TTA016M is designed to withstand high-vibration environments. However, it's crucial to ensure that the capacitor is properly secured and mounted to prevent mechanical stress and damage.
The derating curve for the 229TTA016M can be obtained from Cornell Dubilier Electronics Inc. directly or through their authorized distributors. The derating curve provides guidance on the capacitor's performance at elevated temperatures, helping engineers to ensure reliable operation in their specific application.
Yes, the 229TTA016M is compatible with lead-free soldering processes. The capacitor's terminations are made of a lead-free material, and the manufacturer recommends using a lead-free solder alloy with a melting point of 217°C (423°F) or higher.
The recommended storage condition for the 229TTA016M is in a dry, cool place with a temperature range of 10°C to 30°C (50°F to 86°F) and relative humidity below 70%. Avoid storing the capacitors in direct sunlight or near sources of moisture.

Trust Checks

Community Provided

System Verified

Community Approved

229TTA016M Overview

Use the download button to access the 229TTA016M schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 229TT, or try a keyword search, such as Ceramic Capacitors
