2309-1HDCG - Renesas Electronics

Description: The 2309 is a low phase noise, high-speed PLL based, low-skew zero delay buffer. Based on ICS' proprietary low jitter Phase Locked Loop (PLL) techniques, the device provides nine low skew outputs at speeds up to 133 MHz at 3.3 V. The outputs can be generated from the PLL (for zero delay), or directly from the input (for testing), and can be set to tri-state mode or to stop at a low level. The PLL feedback is on-chip and is obtained from the CLKOUT pad. The 2309 is available in two different versions. The 23

Download 2309-1HDCG Model

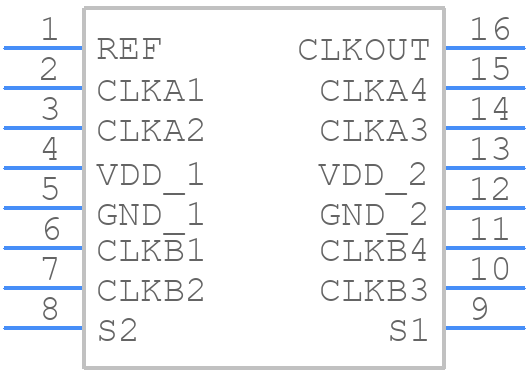

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
2309-1HDCG - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG16 *
click to zoom
3D Models
2309-1HDCG - Renesas Electronics  - 3D model - Small Outline Packages - DCG16 *
click to zoom

2309-1HDCG Details

  • Manufacturer Part Number:

    2309-1HDCG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Manufacturer Package Code:

    DCG16

  • Country Of Origin:

    Philippines, Taiwan

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Family:

    2309

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9314 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.25 ns

  • Seated Height-Max:

    1.7272 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.937 mm

  • fmax-Min:

    133 MHz

2309-1HDCG Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4301EJ0100) which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance.
  • The 2309-1HDCG has a built-in overcurrent protection feature, but it's recommended to add an external overcurrent protection circuit to ensure reliable operation. Renesas provides a reference design in their application note (R01AN4301EJ0100) that includes a sense resistor and a comparator to detect overcurrent conditions.
  • According to Renesas, the maximum allowed voltage on the VCC pin during power-up and power-down sequences is 7V. Exceeding this voltage may damage the device.
  • Renesas provides EMC design guidelines in their application note (R01AN4301EJ0100) which include recommendations for PCB layout, component selection, and shielding to ensure EMC compliance.
  • The recommended operating temperature range for the 2309-1HDCG is -40°C to 125°C. However, the device can operate up to 150°C with derating. Refer to the datasheet for detailed thermal derating information.
