2311765-1 - TE Connectivity

Description: 9 Position D-Shaped Connector, Receptacle, Wire-to-Board, Board Mount, Shell Size 1, 2.77 mm [.109 in] Centerline, Printed Circuit Board, Signal

Download 2311765-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

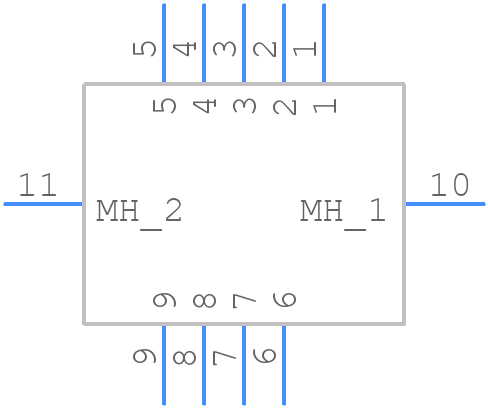

Symbol
2311765-1 - TE Connectivity - PCB symbol
click to zoom

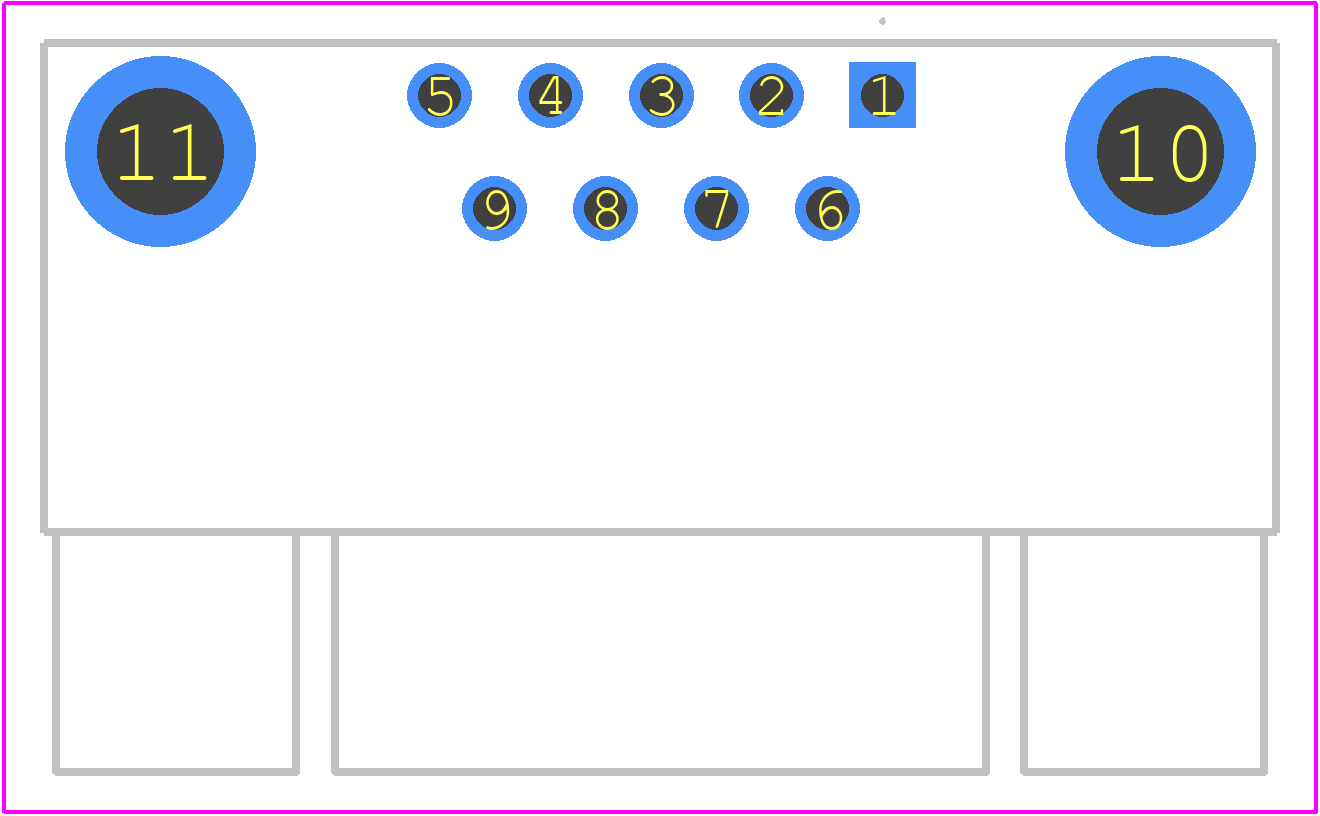

PCB Footprints
2311765-1 - TE Connectivity PCB footprint - Other - Other - 2311765-1-4
click to zoom
3D Models
2311765-1 - TE Connectivity - 3D model - Other - 2311765-1-4
click to zoom

2311765-1 Details

  • Manufacturer Part Number:

    2311765-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.5

  • Board Mounting Option:

    BOARD LOCK

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mating Contact Row Spacing:

    0.111 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #4-40

  • Mounting Option 2:

    SCREWLOCKS

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    3 A

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Terminal Pitch:

    2.77 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

2311765-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 2311765-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 2311765-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • Yes, it's recommended to follow TE Connectivity's PCB layout guidelines to ensure proper clearance, spacing, and thermal management. Consult their application notes and design guides for more information.
  • The 2311765-1 connector is designed to withstand some environmental stressors, but it's essential to consult TE Connectivity's environmental testing data and application notes to determine its suitability for your specific application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2311765-1 Overview

Use the download button to access the 2311765-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23117, or try a keyword search, such as D Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
