2701700000 - Weidmüller

Description: PCB plug-in connector (data), Thread-bolt UNC 4-40, THT solder connection, 2.77 mm, Number of poles: 25, 90°, 3.2 mm, Gold over nickel, black, Tray

Download 2701700000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2701700000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

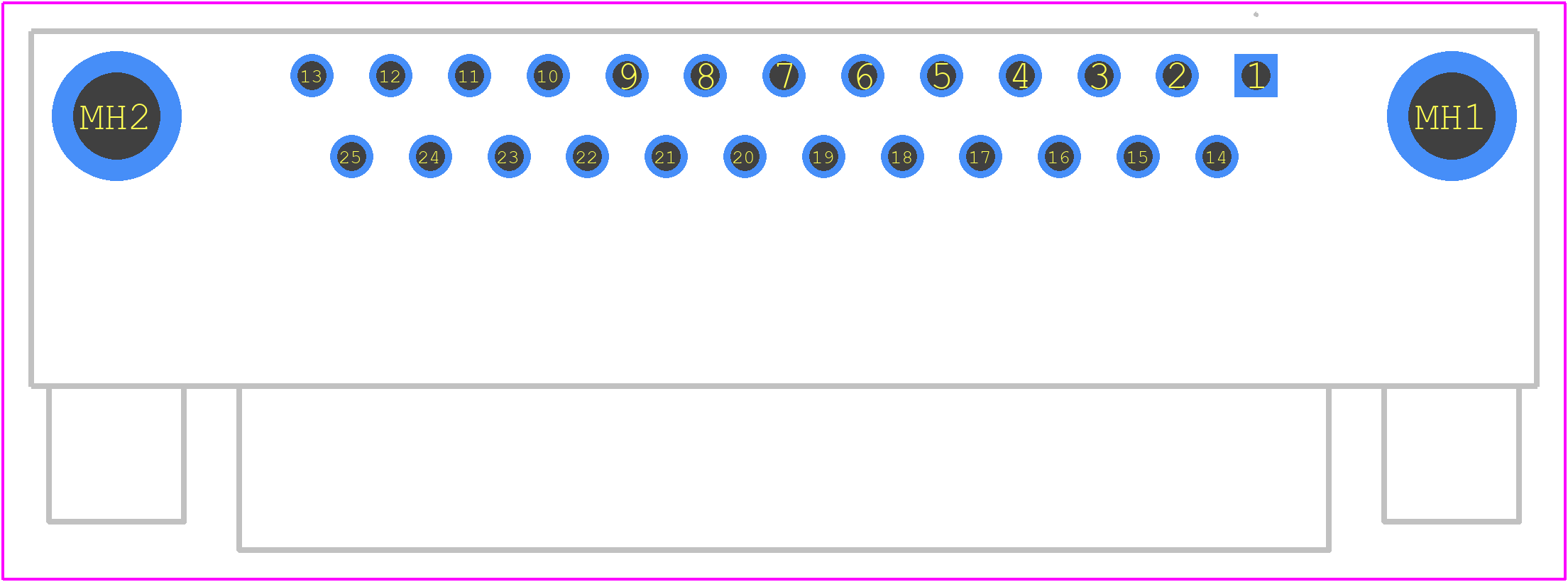

2701700000 - Weidmüller PCB footprint - Other - Other - 2701700000
click to zoom
3D Models
2701700000 - Weidmüller - 3D model - Other - 2701700000
click to zoom

2701700000 Details

  • Manufacturer Part Number:

    2701700000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    0

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2701700000 Overview

Use the download button to access the 2701700000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 27017, or try a keyword search, such as D Type Connectors
