A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but it's recommended to consult Infineon's application notes and thermal design guides for more detailed information.
To ensure reliable operation over the full temperature range, it's essential to follow the recommended operating conditions, including voltage, current, and power dissipation. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a stable junction temperature.
Critical parameters to monitor for fault detection and protection include overcurrent, overvoltage, and overheating. Implementing protection circuits and monitoring these parameters can help prevent damage to the device and ensure reliable operation.
Optimizing the gate driver design involves selecting a suitable gate driver IC, ensuring proper impedance matching, and optimizing the gate resistance and capacitance. Consult Infineon's application notes and gate driver design guides for more detailed information.
Recommended soldering and assembly techniques include using a soldering iron with a temperature-controlled tip, applying a suitable solder paste, and following the recommended reflow soldering profile. Consult Infineon's packaging and assembly guides for more detailed information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2EDN7524F Overview

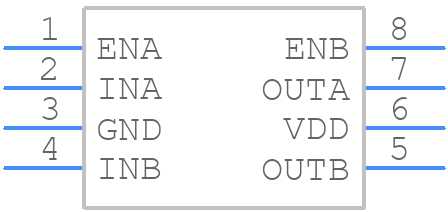

Use the download button to access the 2EDN7524F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2EDN7,
or try a keyword search, such as MOSFET Drivers
