2SAR552P5T100 - ROHM Semiconductor

Description: PNP, SOT-89, -30V -3A, Medium Power Transistor

Download 2SAR552P5T100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

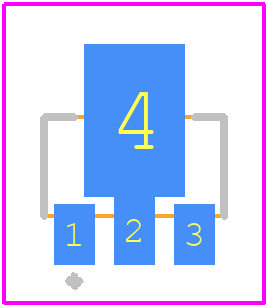

2SAR552P5T100 - ROHM Semiconductor PCB footprint - Other - Other - MPT3
click to zoom
3D Models
2SAR552P5T100 - ROHM Semiconductor  - 3D model - Other - MPT3
click to zoom

2SAR552P5T100 Details

  • Manufacturer Part Number:

    2SAR552P5T100

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-62, SOT-89, 3 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2016-04-06

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    8

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    3 A

  • Collector-Base Capacitance-Max:

    25 pF

  • Collector-Emitter Voltage-Max:

    30 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    200

  • JESD-30 Code:

    R-PSSO-F3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Power Dissipation-Max (Abs):

    2 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    330 MHz

  • VCEsat-Max:

    0.4 V

2SAR552P5T100 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a large copper area on the top and bottom layers connected to the thermal pad, and to use thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended.
  • To ensure proper soldering, use a soldering iron with a temperature of 350°C to 370°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the time the iron is in contact with the device.
  • The recommended storage condition for the device is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%. The device should be stored in its original packaging or in a shielded bag to prevent electrostatic discharge.
  • Yes, the 2SAR552P5T100 is a high-reliability device that meets the requirements of AEC-Q101, making it suitable for use in automotive and other high-reliability applications.
  • To prevent ESD, handle the device in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and use ESD-protected packaging and storage materials.
