2SAR554P5T100 footprint, schematic symbol and 3D model by ROHM Semiconductor

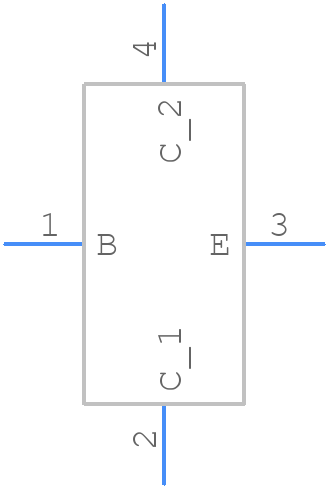

Symbol

click to zoom

PCB Footprints

2SAR554P5T100 - ROHM Semiconductor PCB footprint - Other - Other - 2SAR554P5T100

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2SAR554P5T100
Part Number 2SAR554P5T100
Manufacturer ROHM Semiconductor
Pin Count 4
Part Category Transistor BJT PNP
Package Category Other
Footprint Name Other - 2SAR554P5T100
Released Date Jan 18, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

2SAR554P5T100 Details

Manufacturer Part Number:
2SAR554P5T100
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SC-62, SOT-89, 3 PIN
ECCN Code:
EAR99
Date Of Intro:
2016-04-06
Manufacturer:
ROHM Semiconductor
YTEOL:
8
Case Connection:
COLLECTOR
Collector Current-Max (IC):
1.5 A
Collector-Base Capacitance-Max:
15 pF
Collector-Emitter Voltage-Max:
80 V
Configuration:
SINGLE
DC Current Gain-Min (hFE):
120
JESD-30 Code:
R-PSSO-F3
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Number of Elements:
1
Number of Terminals:
3
Operating Temperature-Max:
150 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TR, 7 INCH
Peak Reflow Temperature (Cel):
260
Polarity/Channel Type:
PNP
Power Dissipation-Max (Abs):
2 W
Surface Mount:
YES
Terminal Finish:
Tin (Sn)
Terminal Form:
FLAT
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
10
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
Transition Frequency-Nom (fT):
340 MHz
VCEsat-Max:
0.4 V

2SAR554P5T100 Frequently Asked Questions (FAQs)

A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are also recommended.
Ensure that the device is operated within the recommended temperature range (Ta = -40°C to 150°C). Use a heat sink or thermal interface material to maintain a safe junction temperature (Tj).
Handle the device by the body, avoiding touching the leads or pins. Store the device in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and handling procedures.
Yes, the 2SAR554P5T100 is AEC-Q101 qualified, making it suitable for automotive and high-reliability applications. However, additional testing and validation may be required.
Consult the datasheet and application notes for troubleshooting guidelines. Check for proper PCB layout, component selection, and soldering. Use oscilloscopes and other diagnostic tools to identify issues.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

2SAR554P5T100 Overview

Use the download button to access the 2SAR554P5T100 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 2SAR5, or try a keyword search, such as Small Signal Bipolar Transistors
