2SK1829(TE85L,F) - Toshiba

Description: Toshiba 2SK1829(TE85L,F) N-channel MOSFET Transistor, 0.05 A, 20 V, 3-Pin USM

Download 2SK1829(TE85L,F) Model

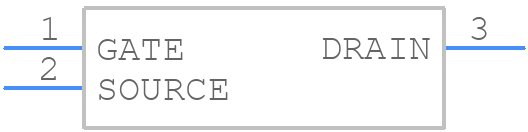

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
2SK1829(TE85L,F) - Toshiba PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - 2-2E1E
click to zoom

2SK1829(TE85L,F) Details

  • Manufacturer Part Number:

    2SK1829(TE85L,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SC-70, 3 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    32 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    0.05 A

  • Drain-source On Resistance-Max:

    40 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    1.6 pF

  • JESD-30 Code:

    R-PDSO-G3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation Ambient-Max:

    0.1 W

  • Power Dissipation-Max (Abs):

    0.1 W

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

2SK1829(TE85L,F) Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 2SK1829 is -55°C to 150°C.
  • To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, minimizing thermal resistance, and avoiding thermal hotspots.
  • The recommended storage condition for the 2SK1829 is in a dry, cool place, away from direct sunlight, with a temperature range of 5°C to 30°C and humidity below 60%.
  • Yes, the 2SK1829 is designed to handle high-voltage applications, but it's essential to ensure that the maximum voltage ratings are not exceeded, and proper voltage derating is applied.
  • To prevent ESD damage, handle the 2SK1829 with anti-static wrist straps, mats, or bags, and ensure that all equipment and tools are properly grounded.
