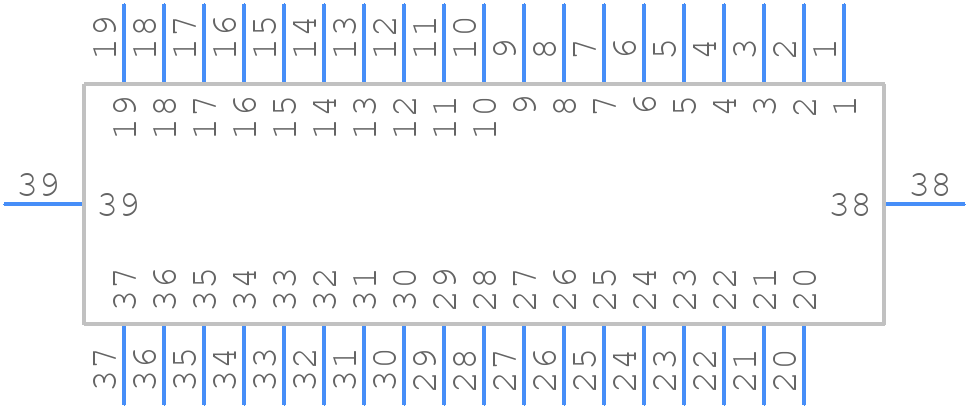

3-1634225-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

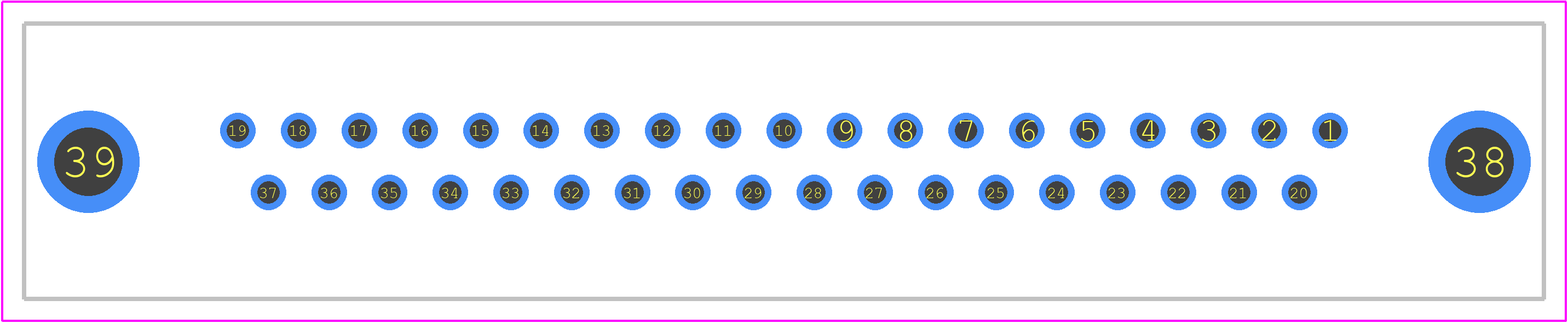

3-1634225-2 - TE Connectivity PCB footprint - Other - Other - 3-1634225-2
click to zoom
3D Models
3-1634225-2 - TE Connectivity - 3D model - Other - 3-1634225-2
click to zoom

3-1634225-2 Details

  • Manufacturer Part Number:

    3-1634225-2

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    GOLD (15) OVER NICKEL

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    37

  • UL Flammability Code:

    94V-0

3-1634225-2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 3-1634225-2 connector is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 3-1634225-2 connector is designed to withstand high-vibration environments and is suitable for applications such as aerospace, automotive, and industrial control systems.
  • Yes, the 3-1634225-2 connector is designed to operate in harsh environments, including extreme temperatures, humidity, and exposure to chemicals and fluids.
  • Yes, the 3-1634225-2 connector is designed to be compatible with other TE Connectivity products, including cables, connectors, and accessories.
  • The maximum operating frequency of the 3-1634225-2 connector is 3 GHz.
