3007W2PCT56N40X - CONEC

Description: D-Sub Mixed Contact Connectors 7W2 MALE R/A .318 POWER LOADED

Download 3007W2PCT56N40X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

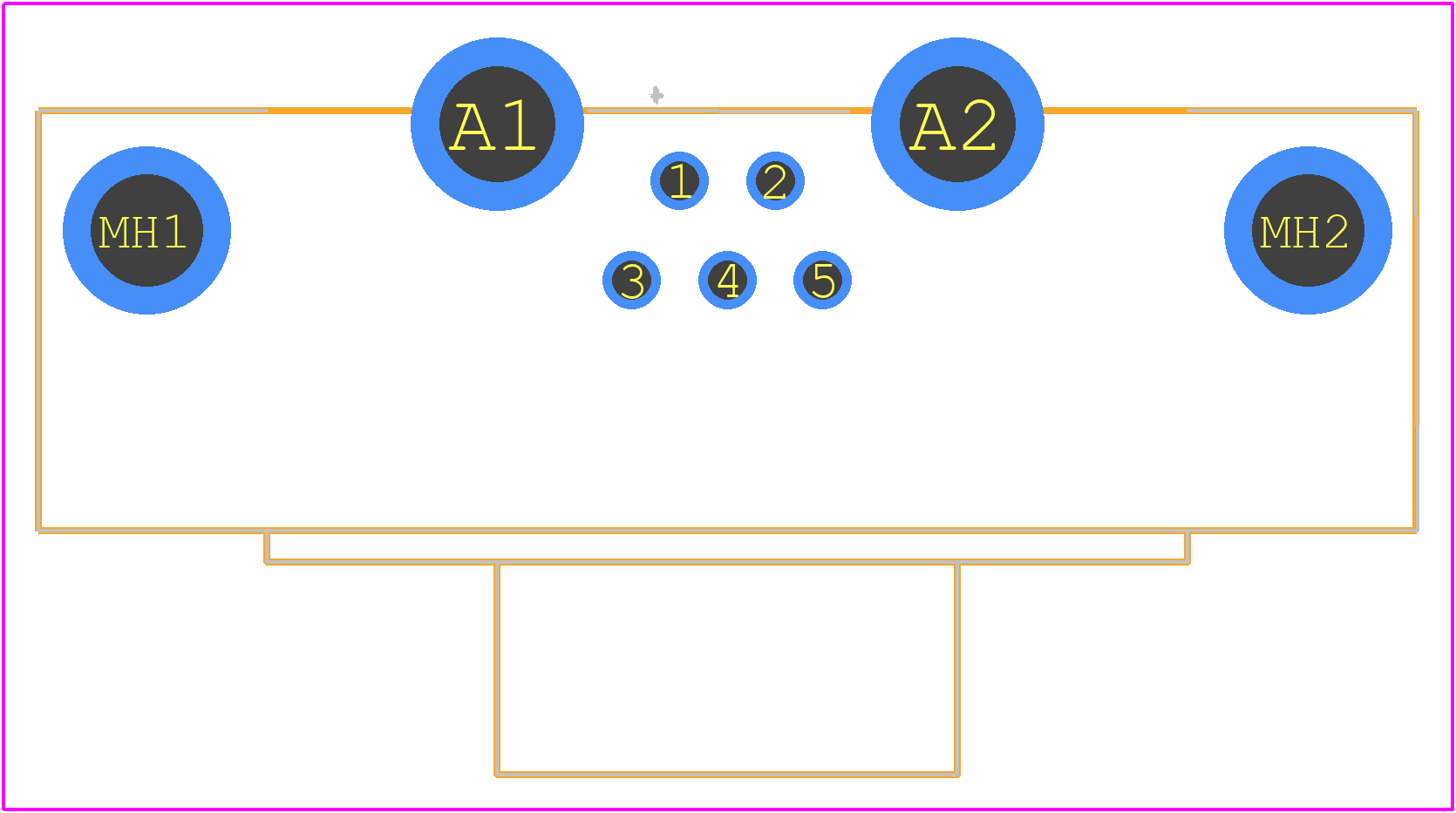

3007W2PCT56N40X - CONEC PCB footprint - Other - Other - 3007W2PCT56N40X-2
click to zoom

3007W2PCT56N40X Details

  • Manufacturer Part Number:

    3007W2PCT56N40X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Conec Corporation

  • Body Breadth:

    0.509 inch

  • Body Depth:

    0.48 inch

  • Body Length:

    1.556 inch

  • Contact Arrangement:

    S5P2

  • Contact Finish Mating:

    AU ON NI

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • Contact Style:

    RND PIN-SKT

  • Insulator Color:

    GREEN

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    HOLE .112-.124

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Option:

    GENERAL PURPOSE

  • Plating Thickness:

    30u inch

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Terminal Length:

    0.13 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    7
