3007W2SAU99G40X footprint, schematic symbol and 3D model by CONEC

Symbol

click to zoom

PCB Footprints

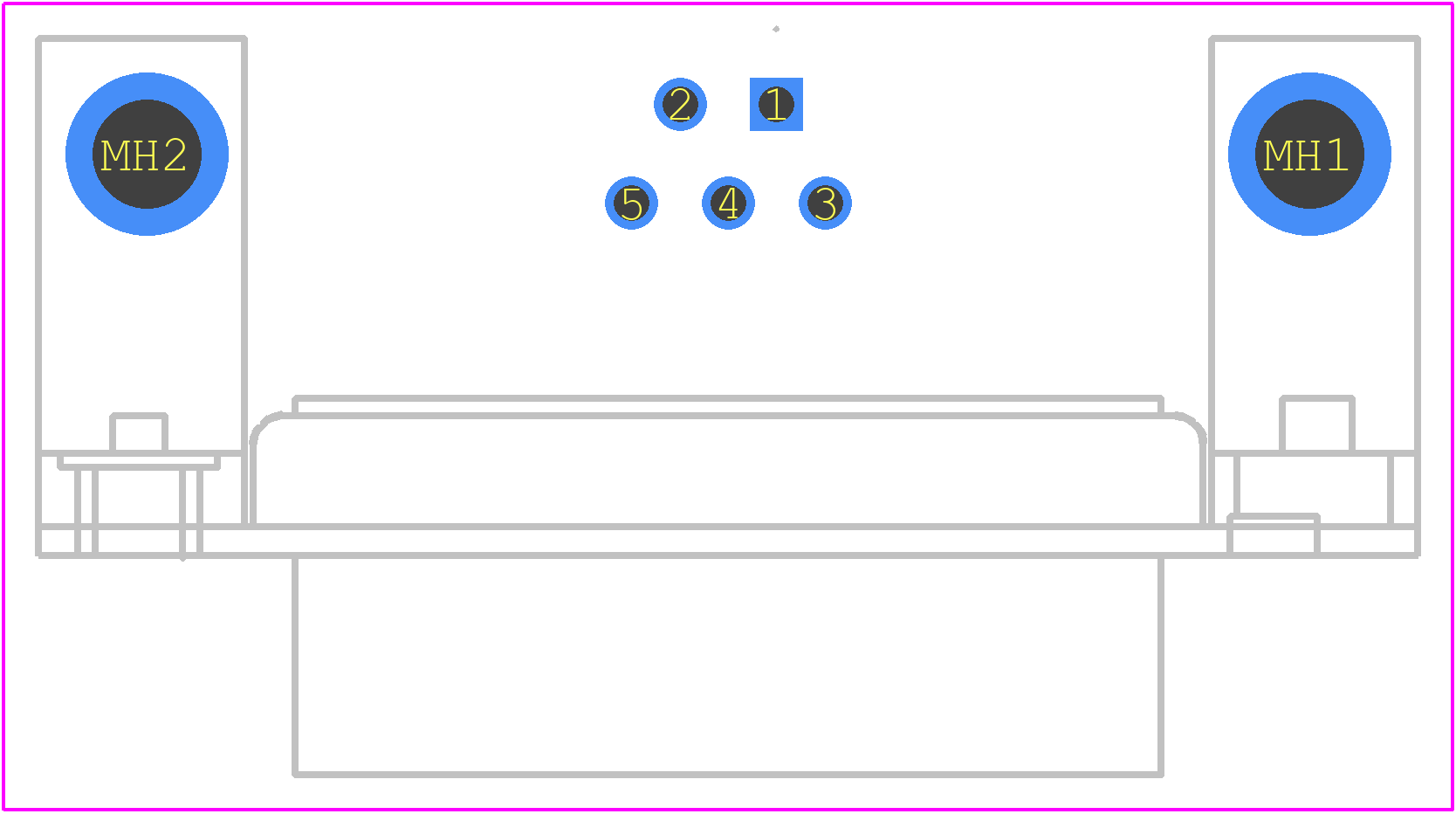

3007W2SAU99G40X - CONEC PCB footprint - Other - Other - 3007W2SAU99G40X-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 3007W2SAU99G40X
Part Number 3007W2SAU99G40X
Manufacturer CONEC
Pin Count 7
Part Category Connector
Package Category Other
Footprint Name Other - 3007W2SAU99G40X-1
Released Date Jun 8, 2023
Last Modified Date Jun 8, 2023 2:24 PM UTC
Pinout / Pin List Click Here (Member Only)

3007W2SAU99G40X Details

Manufacturer Part Number:
3007W2SAU99G40X
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Conec Corporation
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Termination:
Gold (Au) over Nickel (Ni)

3007W2SAU99G40X Frequently Asked Questions (FAQs)

The operating temperature range is -40°C to 125°C.
Yes, the connector is suitable for high-vibration applications, with a vibration resistance of 10-2000 Hz, 10G peak acceleration.
The mating cycle life is 500 cycles minimum.
Yes, the connector is designed for PCB mounting, with a PCB thickness of 1.6 mm ±0.2 mm.
The insulation resistance is 1000 MΩ minimum at 500 V DC.

Trust Checks

Community Provided

System Verified

Community Approved

3007W2SAU99G40X Overview

Use the download button to access the 3007W2SAU99G40X schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 3007W, or try a keyword search, such as D Type Connectors
