3009W4SCT56N40X - CONEC

Description: D-Sub Mixed Contact Connectors 9W4 SOLDER CUP FEMALE R/A 20 AMP

Download 3009W4SCT56N40X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
3009W4SCT56N40X - CONEC - PCB symbol
click to zoom
PCB Footprints

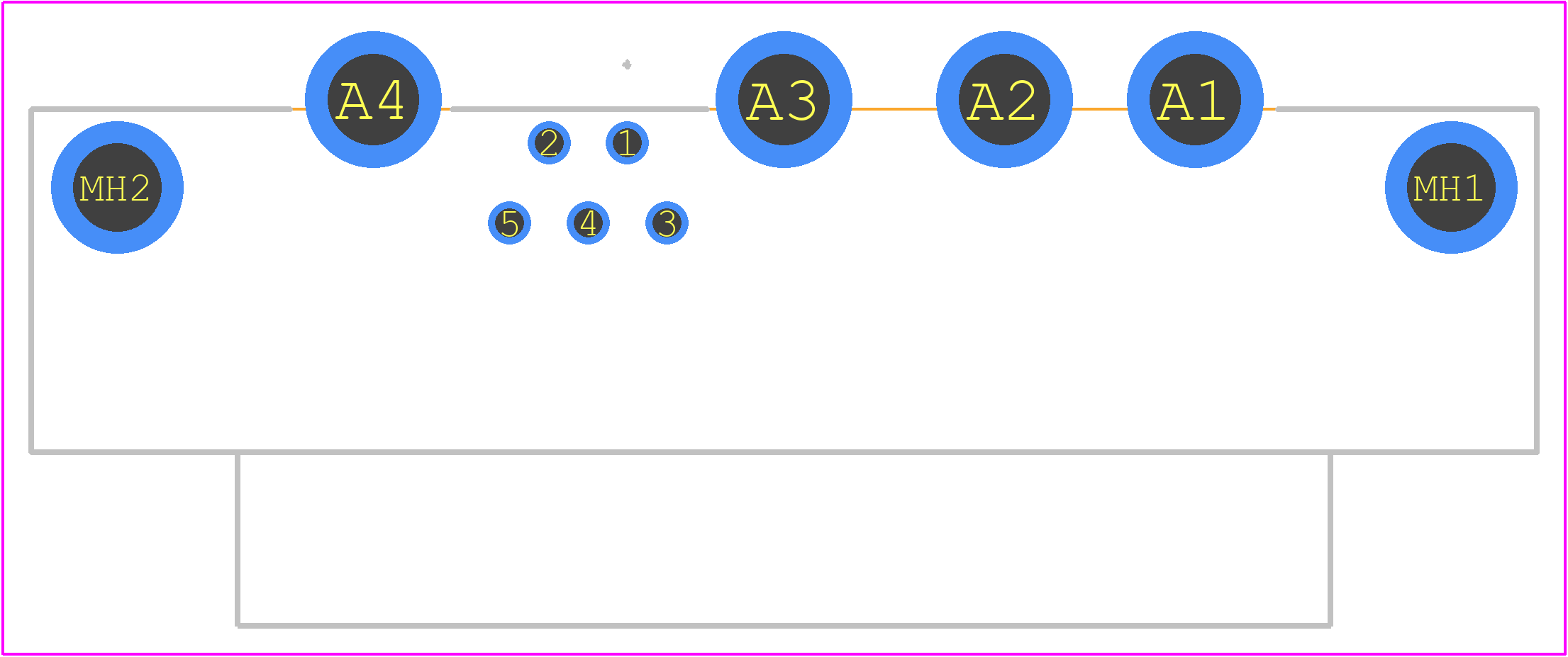

3009W4SCT56N40X - CONEC PCB footprint - Other - Other - 3009W4SCT56N40X-1
click to zoom
3D Models
3009W4SCT56N40X - CONEC - 3D model - Other - 3009W4SCT56N40X-1
click to zoom

3009W4SCT56N40X Details

  • Manufacturer Part Number:

    3009W4SCT56N40X

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Conec Corporation

  • Body Breadth:

    0.496 inch

  • Body Depth:

    0.476 inch

  • Body Length:

    2.09 inch

  • Contact Arrangement:

    S5P4

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • Contact Style:

    RND PIN-SKT

  • Insulator Color:

    GREEN

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    #4-40

  • Mounting Option 2:

    THREADED INSERT

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Option:

    GENERAL PURPOSE

  • Plating Thickness:

    30u inch

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Terminal Length:

    0.171 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

3009W4SCT56N40X Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the M3 screw threads, but it's always best to consult the specific application and environmental requirements.
  • Yes, the 3009W4SCT56N40X is designed to withstand vibrations up to 10g (IEC 61373) and is suitable for use in high-vibration environments, but additional testing may be required for specific applications.
  • The operating temperature range for the 3009W4SCT56N40X is -40°C to 125°C, but it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 3009W4SCT56N40X has a IP67 rating, making it suitable for use in harsh environments, but it's crucial to evaluate the specific environmental conditions and potential chemical exposure to ensure the connector's reliability.
  • The 3009W4SCT56N40X has a mating cycle life of at least 500 cycles, but this may vary depending on the specific application, mating forces, and environmental conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

3009W4SCT56N40X Overview

Use the download button to access the 3009W4SCT56N40X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 3009W, or try a keyword search, such as D Type Connectors
