300P14-U - THAT CORPORATION

Description: Bipolar Transistors - BJT 4 NPN Matched Trans. Array DIP-14

Download 300P14-U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

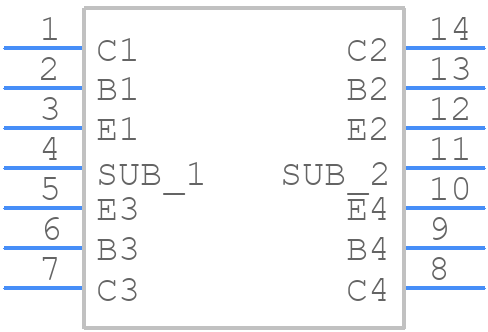

300P14-U - THAT CORPORATION - PCB symbol
click to zoom
PCB Footprints

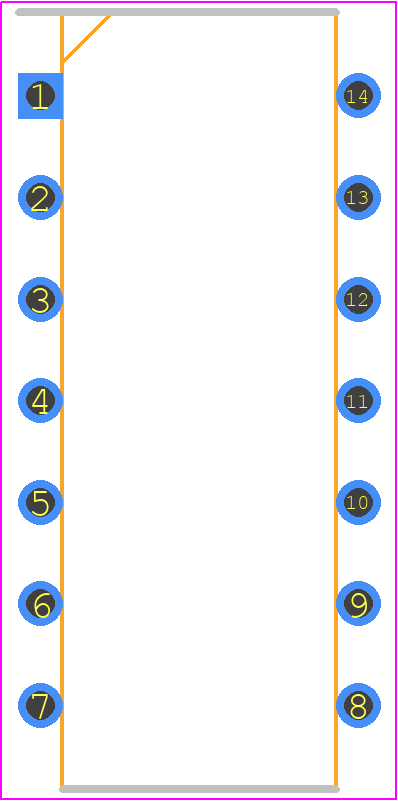

300P14-U - THAT CORPORATION PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP14
click to zoom
3D Models
300P14-U - THAT CORPORATION - 3D model - Dual-In-Line Packages - DIP14
click to zoom

300P14-U Details

  • Manufacturer Part Number:

    300P14-U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    DIP-14

  • ECCN Code:

    EAR99

  • Manufacturer:

    THAT Corporation

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    0.03 A

  • Collector-Base Capacitance-Max:

    3 pF

  • Collector-Emitter Voltage-Max:

    36 V

  • Configuration:

    SEPARATE, 4 ELEMENTS

  • DC Current Gain-Min (hFE):

    60

  • JESD-30 Code:

    R-PDIP-T14

  • Number of Elements:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Polarity/Channel Type:

    NPN

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    350 MHz

300P14-U Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 300P14-U is -40°C to +85°C.
  • To ensure proper biasing, follow the recommended voltage and current settings outlined in the datasheet, and use a stable voltage source with minimal noise and ripple.
  • The maximum power dissipation for the 300P14-U is 1.5W. Ensure proper heat sinking and thermal management to prevent overheating.
  • While the 300P14-U is a high-quality component, it is not specifically designed for high-reliability or aerospace applications. Consult with THAT Corporation or a qualified engineer to determine suitability for such applications.
  • To troubleshoot issues, start by verifying the circuit design and component values, then check for proper biasing, and ensure the device is properly terminated. Consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

300P14-U Overview

Use the download button to access the 300P14-U schematic symbol, PCB footprint, and 3D model.
