300S14-U - THAT CORPORATION

Description: Bipolar Transistors - BJT 4 NPN Matched Trans. Array SO-14

Download 300S14-U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

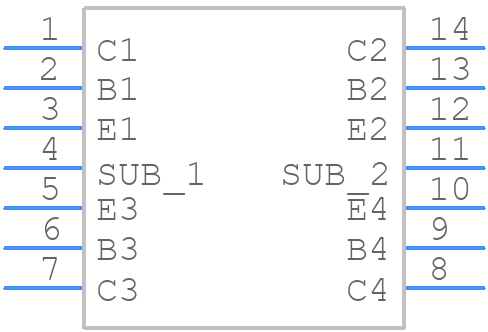

Symbol
300S14-U - THAT CORPORATION - PCB symbol
click to zoom
PCB Footprints
300S14-U - THAT CORPORATION PCB footprint - Small Outline Packages - Small Outline Packages - SO14
click to zoom
3D Models
300S14-U - THAT CORPORATION - 3D model - Small Outline Packages - SO14
click to zoom

300S14-U Details

  • Manufacturer Part Number:

    300S14-U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SOP-14

  • ECCN Code:

    EAR99

  • Manufacturer:

    THAT Corporation

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    0.03 A

  • Collector-Base Capacitance-Max:

    3 pF

  • Collector-Emitter Voltage-Max:

    36 V

  • Configuration:

    SEPARATE, 4 ELEMENTS

  • DC Current Gain-Min (hFE):

    60

  • JESD-30 Code:

    R-PDSO-G14

  • Number of Elements:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    NPN

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    350 MHz

300S14-U Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 300S14-U is -40°C to +85°C.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the VEE pin to a stable -5V power supply. Also, make sure to decouple the power supplies with 10uF capacitors.
  • The maximum input signal amplitude that the 300S14-U can handle is ±10V peak-to-peak.
  • To minimize noise and hum, use a well-regulated power supply, keep the input and output traces short and away from noise sources, and use shielding or twisted pairs for the input and output cables.
  • Yes, the 300S14-U can be used in a single-supply application by connecting the VEE pin to ground and using a voltage divider to generate a virtual ground.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

300S14-U Overview

Use the download button to access the 300S14-U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 300S1, or try a keyword search, such as Small Signal Bipolar Transistors
