302W2CPXX56N40X - CONEC

Description: D-Sub Mixed Contact Connectors COMBO DSUB MTL BRKT

Download 302W2CPXX56N40X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
302W2CPXX56N40X - CONEC - PCB symbol
click to zoom
PCB Footprints

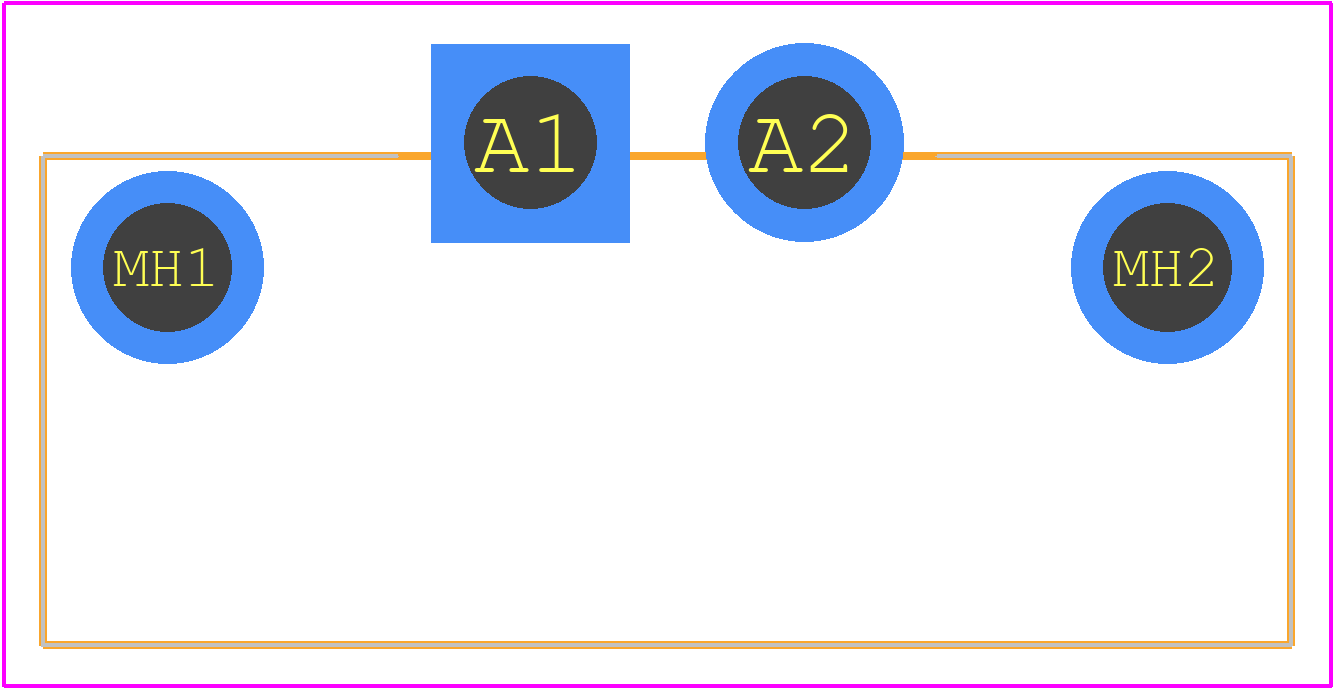

302W2CPXX56N40X - CONEC PCB footprint - Other - Other - 302W2CPXX56N40X-2
click to zoom
3D Models
302W2CPXX56N40X - CONEC - 3D model - Other - 302W2CPXX56N40X-2
click to zoom

302W2CPXX56N40X Details

  • Manufacturer Part Number:

    302W2CPXX56N40X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Conec Corporation

  • Body Breadth:

    0.509 inch

  • Body Depth:

    0.211 inch

  • Body Length:

    1.228 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Style:

    HYBRID

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    LOCKING

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Total Number of Contacts:

    2

302W2CPXX56N40X Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific application and environmental conditions to determine the optimal torque value.
  • Yes, the connector is designed to withstand vibrations up to 10g acceleration, but it's crucial to ensure proper mounting and secure fastening to prevent damage or disconnection.
  • The 302W2CPXX56N40X is rated for operating temperatures between -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consult the datasheet and application notes for specific environmental requirements.
  • The 302W2CPXX56N40X is rated for a minimum of 500 mating cycles, but this may vary depending on the specific application and usage.
  • The 302W2CPXX56N40X is designed to be compatible with Conec Corporation's mating connectors, but compatibility with other manufacturers' connectors is not guaranteed and may require additional testing and validation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

302W2CPXX56N40X Overview

Use the download button to access the 302W2CPXX56N40X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 302W2, or try a keyword search, such as D Type Connectors
