320S14-U - THAT CORPORATION

Description: Bipolar Transistors - BJT 4 PNP Matched Trans. Array SO-14

Download 320S14-U Model

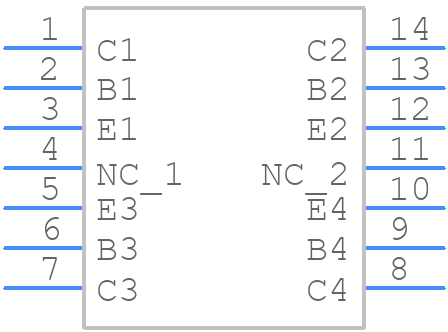

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
320S14-U - THAT CORPORATION PCB footprint - Small Outline Packages - Small Outline Packages - 320S14-U-1
click to zoom
3D Models
320S14-U - THAT CORPORATION  - 3D model - Small Outline Packages - 320S14-U-1
click to zoom

320S14-U Details

  • Manufacturer Part Number:

    320S14-U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SOP-14

  • ECCN Code:

    EAR99

  • Manufacturer:

    THAT Corporation

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    0.03 A

  • Collector-Base Capacitance-Max:

    3 pF

  • Collector-Emitter Voltage-Max:

    36 V

  • Configuration:

    SEPARATE, 4 ELEMENTS

  • DC Current Gain-Min (hFE):

    50

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Polarity/Channel Type:

    PNP

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    325 MHz
