380LQ331M400K022 - Cornell Dubilier

Description: Cornell-Dubilier 330µF 400V dc Aluminium Capacitor 30 x 30mm +85°C 30mm 10mm 30mm

Download 380LQ331M400K022 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
380LQ331M400K022 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

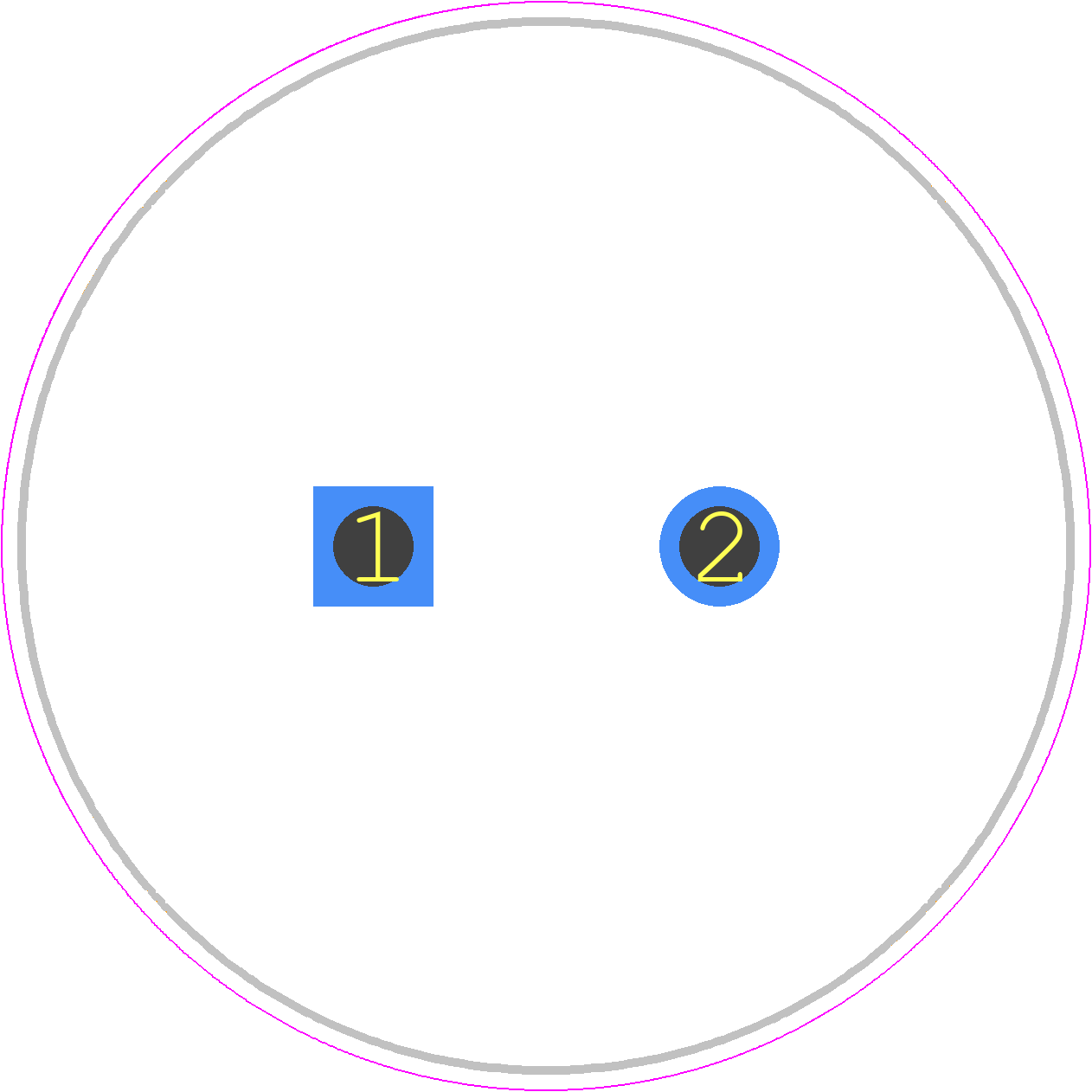

380LQ331M400K022 - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 380LQ331M400K022
click to zoom
3D Models
380LQ331M400K022 - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - 380LQ331M400K022
click to zoom

380LQ331M400K022 Details

  • Manufacturer Part Number:

    380LQ331M400K022

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Cornell Dubilier Electronics Inc

  • YTEOL:

    6

  • Capacitance:

    330 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    603 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.09 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    1900 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

380LQ331M400K022 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 380LQ331M400K022 capacitor is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the 380LQ331M400K022 capacitor is designed to withstand high-vibration environments and meets the vibration test requirements of IEC 60068-2-6.
  • Yes, the 380LQ331M400K022 capacitor is designed for high-reliability applications and meets the requirements of MIL-PRF-123 and MIL-PRF-39006.
  • The maximum allowable DC voltage derating for the 380LQ331M400K022 capacitor is 50% of the rated voltage at 125°C.
  • Yes, the 380LQ331M400K022 capacitor is designed to operate in humid environments and meets the humidity test requirements of IEC 60068-2-78.
