4-794618-4 - TE Connectivity

Description: Configuration Features: Number of Rows 2 | Number of Power Positions 14 | Number of Positions 14 | PCB Mount Orientation Right Angle | Contact Features: Contact Mating Area Plating Material Thickness 100 – 300 MICIN | Contact Retention Within Housing Without | Contact Type Pin | PCB Contact Termination Area Plating Material Tin | PCB Contact Termination Area Plating Material Thickness 2.54 MICM | Contact Current Rating (Max) 5 AMP | Contact Mating Area Plating Material Thickness 2.54 – 7.62 MICM | Multi

Download 4-794618-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4-794618-4 - TE Connectivity - PCB symbol
click to zoom

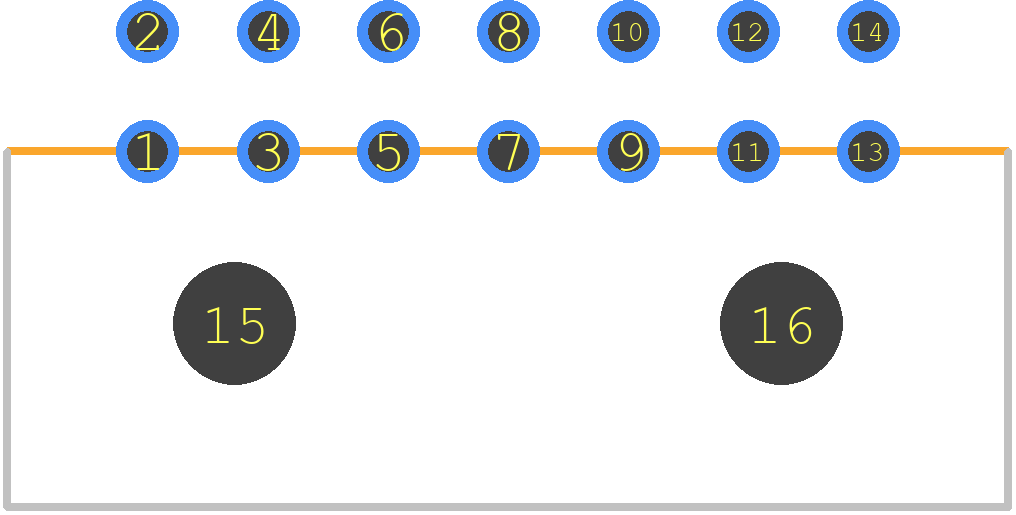

PCB Footprints
4-794618-4 - TE Connectivity PCB footprint - Other - Other - 4-794618-4
click to zoom
3D Models
4-794618-4 - TE Connectivity - 3D model - Other - 4-794618-4
click to zoom

4-794618-4 Details

  • Manufacturer Part Number:

    4-794618-4

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Additional Feature:

    POLARIZATION

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    0.29 inch

  • Body Depth:

    0.469 inch

  • Body Length:

    0.984 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    30 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Diameter-Min:

    0.06 inch

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    5A

  • Mating Contact Pitch:

    0.118 inch

  • Mating Contact Row Spacing:

    0.118 inch

  • Mating Information:

    1-794617-4

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LATCH

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.9972 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    300u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    5 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.135 inch

  • Terminal Pitch:

    3 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    .6672 N

4-794618-4 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the connector is suitable for outdoor use, but it's recommended to use a sealant or conformal coating to protect it from moisture and environmental factors.
  • Yes, the connector is designed to withstand vibrations, but it's recommended to use a secondary locking mechanism, such as a screw or clip, to ensure secure connections in high-vibration environments.
  • The maximum operating temperature for the 4-794618-4 connector is 125°C (257°F), but it's recommended to derate the current carrying capacity at higher temperatures.
  • Yes, the 4-794618-4 connector meets UL standards for safety and performance, but it's recommended to verify compliance with specific UL requirements for your application.
