453-00005 - Laird Technologies

Description: Bluetooth Modules (802.15.1) BL651 Series - Bluetooth v5 Module, Int. Antenna (Nordic nRF52810) Tape & Reel

Download 453-00005 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

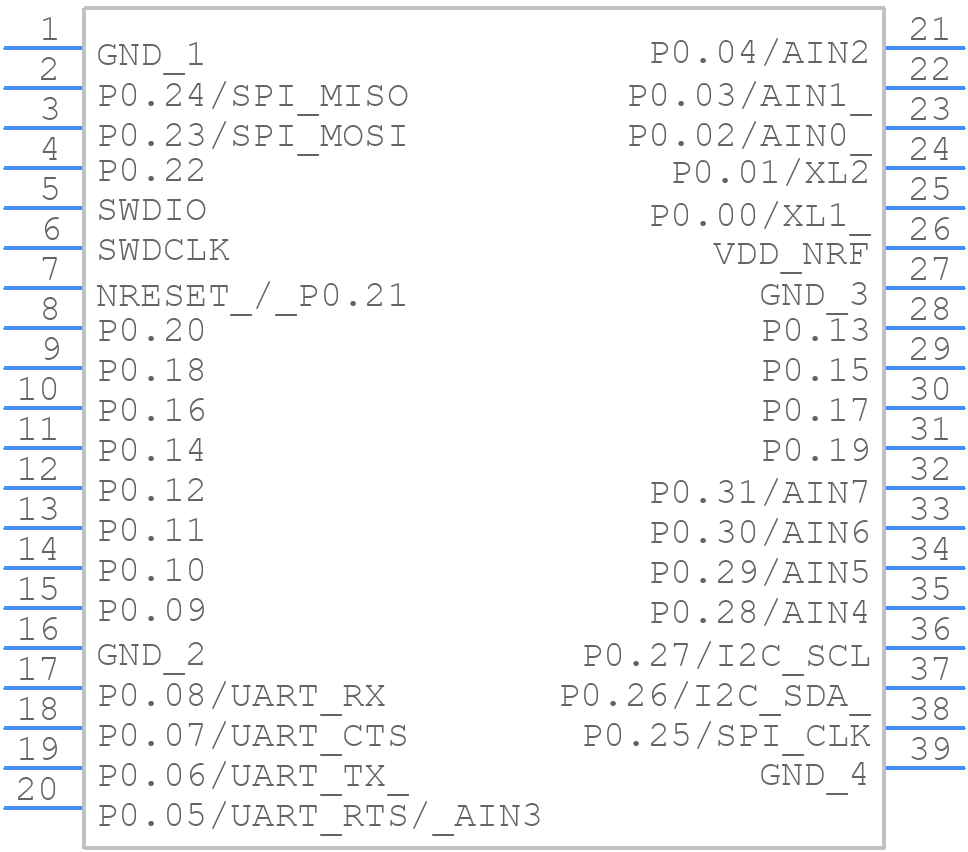

453-00005 - Laird Technologies - PCB symbol
click to zoom
PCB Footprints

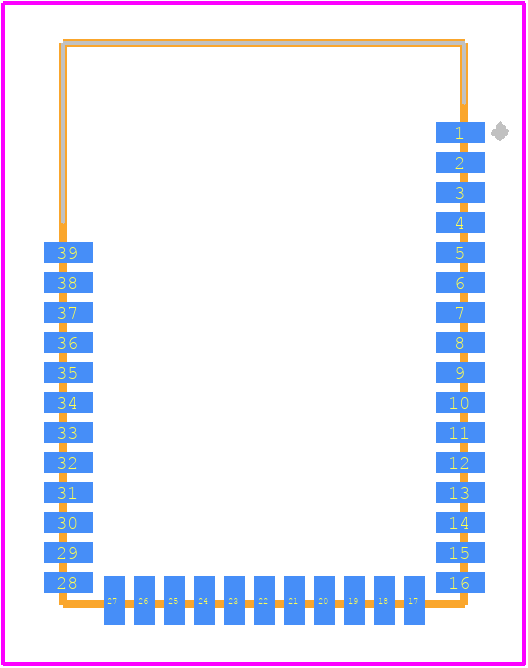

453-00005 - Laird Technologies PCB footprint - Other - Other - BL651
click to zoom
3D Models
453-00005 - Laird Technologies - 3D model - Other - BL651
click to zoom

453-00005 Details

  • Manufacturer Part Number:

    453-00005

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Qnity Laird

  • JESD-30 Code:

    R-XXMA-N39

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    39

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.33 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.75 mm

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

453-00005 Frequently Asked Questions (FAQs)

  • The recommended installation orientation is vertical polarization, with the antenna mounted perpendicular to the ground or mounting surface.
  • The 453-00005 antenna is designed to operate in temperatures ranging from -40°C to +85°C, making it suitable for outdoor and industrial applications.
  • The maximum power rating for the 453-00005 antenna is 10W, making it suitable for most wireless communication systems.
  • Yes, the 453-00005 antenna is designed for outdoor use and is IP67 rated, making it suitable for harsh environmental conditions.
  • The typical lead time for delivery of the 453-00005 antenna is 2-4 weeks, depending on the quantity and shipping location.
