475CKE250M - Cornell Dubilier

Description: Aluminium Electrolytic Capacitors - Radial Leaded 4.7uF 250V 20% LYTICS/IC

Download 475CKE250M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
475CKE250M - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

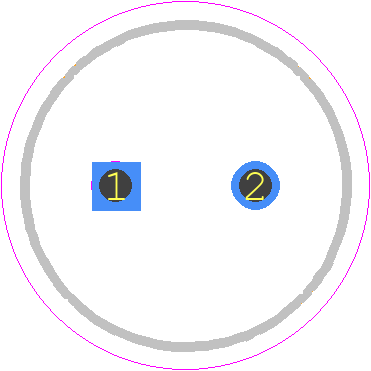

475CKE250M - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 8*11.5
click to zoom
3D Models
475CKE250M - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - 8*11.5
click to zoom

475CKE250M Details

  • Manufacturer Part Number:

    475CKE250M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    6

  • Capacitance:

    4.7 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    52911 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.07525 mA

  • Length:

    11.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Ripple Current:

    53 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    3.5 mm

  • Terminal Shape:

    WIRE

475CKE250M Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum dwell time of 10 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the capacitor.
  • Yes, the 475CKE250M is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the capacitor to prevent mechanical stress and damage.
  • The 475CKE250M is designed to operate in humid environments, but it's essential to follow the manufacturer's guidelines for humidity ratings and ensure proper sealing and encapsulation to prevent moisture ingress.
  • The ESR of the 475CKE250M is not explicitly stated in the datasheet, but it can be estimated to be around 0.05 ohms based on the capacitor's construction and materials. However, it's recommended to consult with the manufacturer or a reliable source for accurate ESR values.
  • Yes, the 475CKE250M is suitable for use in DC-DC converter applications due to its low ESR, high ripple current rating, and high capacitance value. However, it's essential to ensure the capacitor is properly sized and selected for the specific application requirements.
