476TTA450MRZ - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - Axial Leaded 47uF 450V 20% tol. ELECTROLYTIC

Download 476TTA450MRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
476TTA450MRZ - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

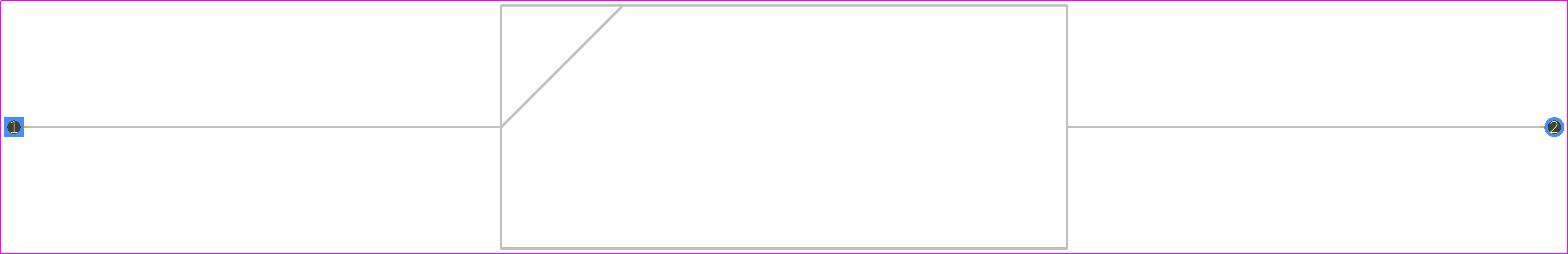

476TTA450MRZ - Cornell Dubilier PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 18x41_1
click to zoom
3D Models
476TTA450MRZ - Cornell Dubilier - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 18x41_1
click to zoom

476TTA450MRZ Details

  • Manufacturer Part Number:

    476TTA450MRZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Cornell Dubilier Electronics Inc

  • YTEOL:

    6

  • Capacitance:

    47 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    18 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    8818.4 mΩ

  • Leakage Current:

    2.155 mA

  • Length:

    41 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Axial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    300 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.25

  • Terminal Shape:

    WIRE
