477TTA025M - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - Axial Leaded 470uF 25V 20%

Download 477TTA025M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
477TTA025M - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

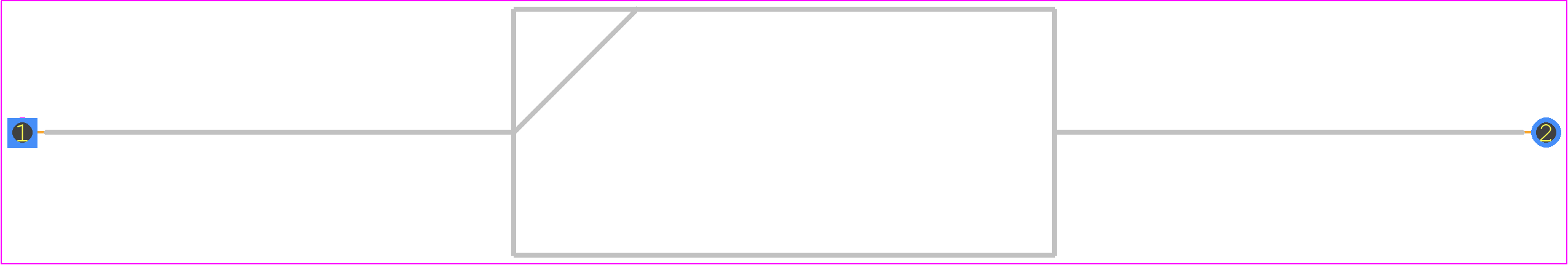

477TTA025M - Cornell Dubilier PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 10x21-s
click to zoom
3D Models
477TTA025M - Cornell Dubilier - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 10x21-s
click to zoom

477TTA025M Details

  • Manufacturer Part Number:

    477TTA025M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    6

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    10 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    564.4 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.3525 mA

  • Length:

    21 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Ripple Current:

    560 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.16

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    WIRE

477TTA025M Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 5 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the capacitor.
  • Yes, the 477TTA025M is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which ensures its reliability in demanding applications.
  • Yes, the 477TTA025M is lead-free and RoHS-compliant, making it suitable for use in lead-free soldering processes. However, it's essential to follow the manufacturer's recommended soldering profile to ensure reliable assembly.
  • The maximum allowable DC voltage derating for the 477TTA025M is 10% of the rated voltage. This means that if the capacitor is rated for 25V, the maximum allowable DC voltage would be 22.5V.
  • The 477TTA025M has a moisture sensitivity level (MSL) rating of 2, which means it can withstand normal humidity levels. However, it's not recommended for use in extremely humid or moist environments without proper protection or encapsulation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

477TTA025M Overview

Use the download button to access the 477TTA025M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 477TT, or try a keyword search, such as Aluminum Electrolytic Capacitors
