4N25 - Isocom

Description: Isocom 4N25 DC Input Transistor Output Optocoupler, Through Hole, 6-Pin PDIP

Download 4N25 Model

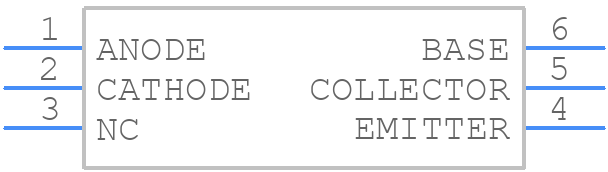

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
4N25 - Isocom PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - ISOCOM-6PIN-DIP-2.54PITCH
click to zoom
3D Models
4N25 - Isocom  - 3D model - Dual-In-Line Packages - ISOCOM-6PIN-DIP-2.54PITCH
click to zoom

4N25 Details

  • Manufacturer Part Number:

    4N25

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Isocom Components

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    20%

  • Current Transfer Ratio-Nom:

    20%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.0000028 s

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

4N25 Frequently Asked Questions (FAQs)

  • The maximum allowable voltage that can be applied to the input pins is 5V, exceeding which may cause damage to the device.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current and voltage ratings according to the datasheet's thermal derating curve.
  • The recommended input current for the 4N25 is 10mA to 20mA, depending on the specific application and required output current.
  • The 4N25 is not suitable for high-frequency applications due to its limited bandwidth (typically up to 10kHz). For high-frequency applications, consider using a faster optocoupler like the 6N137 or 7N137.
