The maximum allowable voltage that can be applied to the input pins is 5V, exceeding which may cause damage to the device.
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
The recommended layout and spacing for the 4N28 on a PCB is to keep the device at least 1.5 mm away from other components and to use a ground plane to minimize electromagnetic interference.
The 4N28 is not suitable for high-frequency applications above 1 MHz due to its limited bandwidth. For high-frequency applications, consider using a high-speed optocoupler like the 6N137 or 6N138.
To troubleshoot issues with the 4N28, check the input voltage and current, ensure proper connections, and verify that the device is not overheating. Also, check for any signs of physical damage or contamination.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4N28 Overview

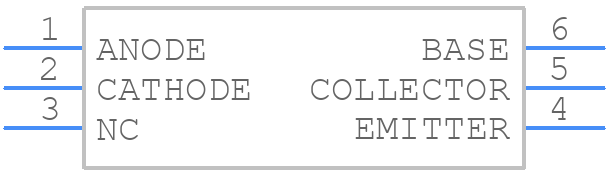

Use the download button to access the 4N28 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Optocoupler
