4N28SR2VM - onsemi

Description: Minimum Current Transfer Ratio at IF = 10 mA, VCE = 10 V: – 10% for 4N27M and 4N28M – 20% for 4N25M and 4N26M – 100% for 4N35M, 4N36M and 4N37M; Safety and Regulatory Approvals: – UL1577, 4,170 VACRMS for 1 Minute – DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage

Download 4N28SR2VM Model

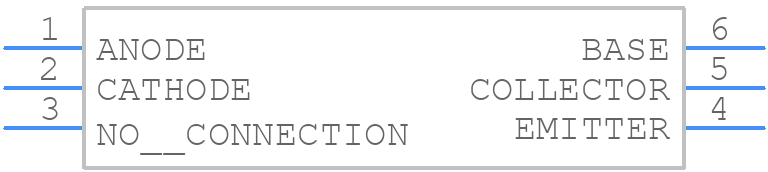

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
4N28SR2VM - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - PDIP6 8.51x6.35, 2.54P_A
click to zoom

4N28SR2VM Details

  • Manufacturer Part Number:

    4N28SR2VM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Manufacturer Package Code:

    646BY

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    10%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    4170 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.00001 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

4N28SR2VM Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the 4N28SR2VM involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the distance between the optocoupler and the associated components.
  • To ensure reliable operation of the 4N28SR2VM in high-temperature environments, it is essential to follow the recommended derating curves, provide adequate heat sinking, and ensure that the device is operated within its specified temperature range.
  • Common failure modes of the 4N28SR2VM include input-to-output isolation breakdown, LED failure, and photodiode failure. These can be caused by excessive voltage, current, or temperature, as well as manufacturing defects or contamination.
  • To troubleshoot issues with the 4N28SR2VM, start by checking the input and output circuits for proper connection and operation. Verify that the device is operated within its specified voltage, current, and temperature ranges. Use a multimeter to measure the input and output voltages and currents, and check for any signs of physical damage or contamination.
  • The 4N28SR2VM is not suitable for high-frequency applications due to its limited bandwidth. It is recommended to use a high-frequency optocoupler such as the FODM8801 or the ACPL-332J for applications above 1 MHz.
