4N32SR2M - onsemi

Description: Meets or Exceeds All JEDEC Registered Specifications; Safety and Regulatory Approvals:; UL1577, 4,170 VACRMS for 1 Minute; DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage"; "High Sensitivity to Low Input Drive Current

Download 4N32SR2M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

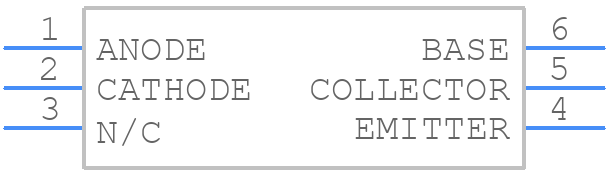

Symbol
4N32SR2M - onsemi - PCB symbol
click to zoom
PCB Footprints
4N32SR2M - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 4N32SR2M-1
click to zoom

4N32SR2M Details

  • Manufacturer Part Number:

    4N32SR2M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    SURFACE MOUNT PACKAGE-6

  • Manufacturer Package Code:

    646BY

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    500%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.08 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    4170 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    DARLINGTON OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000005 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

4N32SR2M Frequently Asked Questions (FAQs)

  • The maximum allowable voltage that can be applied to the input pins is 5V, as exceeding this voltage can cause damage to the internal LED.
  • To ensure reliable operation in high-temperature environments, it's essential to derate the current through the LED and ensure good thermal management, such as using a heat sink or providing adequate airflow.
  • The recommended input current range for optimal performance is between 1mA and 10mA, as this range provides a good balance between switching speed and current transfer ratio.
  • While the 4N32SR2M can be used in high-frequency switching applications, its bandwidth is limited to around 10kHz. For higher-frequency applications, consider using a faster optocoupler like the FODM8071.
  • To minimize EMI, use a shielded cable for the input signal, keep the input and output circuits separate, and consider adding a ferrite bead or common-mode choke to the input lines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4N32SR2M Overview

Use the download button to access the 4N32SR2M schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 4N32S, or try a keyword search, such as Optocoupler
