5205738-3 - TE Connectivity

Description: Body Features: Insert Material Polyamide, GV | Primary Product Color Black | Connector Profile Standard | Shell Plating Material Zinc | Configuration Features: Number of Rows 2 | Number of Positions 25 | PCB Mount Orientation Vertical | Contact Features: Contact Mating Area Plating Material Gold | Contact Underplating Material Palladium Nickel | Contact Mating Area Plating Material Thickness 30 MICIN | PCB Contact Termination Area Plating Material Tin | Contact Base Material Phosphor Bronze | Contact Curren

Download 5205738-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5205738-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

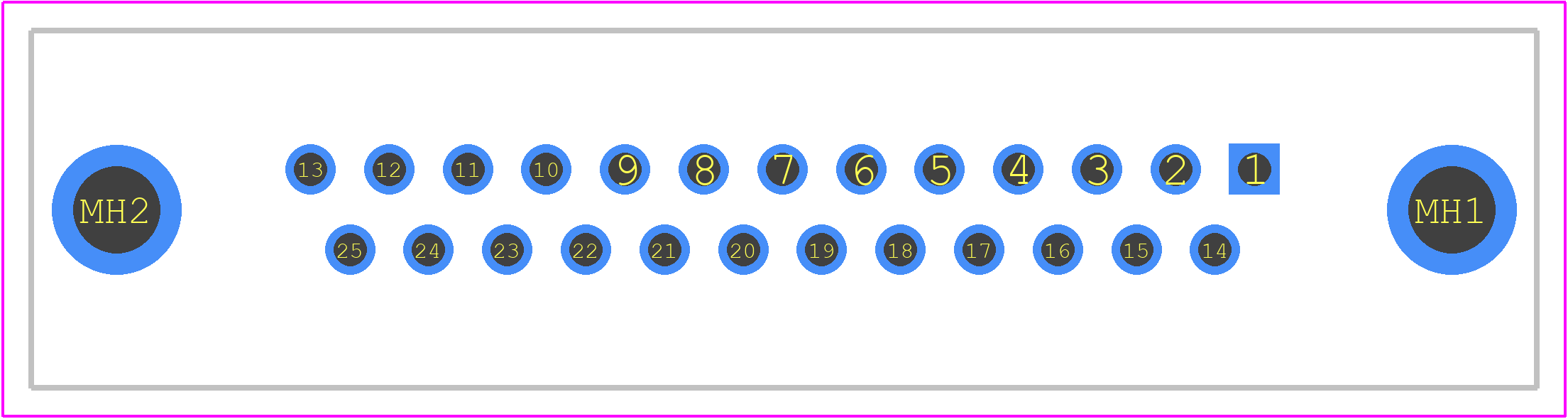

5205738-3 - TE Connectivity PCB footprint - Other - Other - 5205738-3-2
click to zoom
3D Models
5205738-3 - TE Connectivity - 3D model - Other - 5205738-3-2
click to zoom

5205738-3 Details

  • Manufacturer Part Number:

    5205738-3

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Body/Shell Style:

    RECEPTACLE

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYAMIDE/POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    6A

  • Mating Contact Row Spacing:

    0.112 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    6 A

  • Reference Standard:

    UL

  • Shell Finish:

    ZINC

  • Shell Material:

    STEEL

  • Shell Size:

    3/B

  • Terminal Length:

    0.427 inch

  • Terminal Pitch:

    2.74 mm

  • Termination Type:

    SOLDER

  • UL Flammability Code:

    94V-0

5205738-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5205738-3 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The operating temperature range for the 5205738-3 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector operates within this temperature range to maintain its performance and reliability.
  • The 5205738-3 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not recommended for exposure to harsh chemicals. If you need to use the connector in a chemically aggressive environment, consult with TE Connectivity or a qualified engineer for guidance.
  • The 5205738-3 connector is rated for a maximum current of 13A per contact. If you need to use the connector for higher current applications, consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for your specific application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5205738-3 Overview

Use the download button to access the 5205738-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 52057, or try a keyword search, such as D Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
