530BB125M000DG - Skyworks

Description: 125 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead , 98mA , -40°C ~ 85°C

Download 530BB125M000DG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

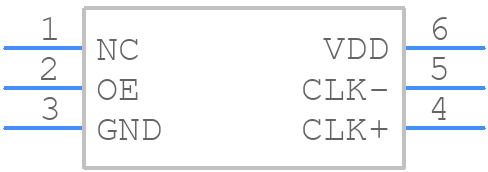

530BB125M000DG - Skyworks - PCB symbol
click to zoom
PCB Footprints
530BB125M000DG - Skyworks PCB footprint - Other - Other - 6-SMD_2025-1.1
click to zoom
3D Models
530BB125M000DG - Skyworks - 3D model - Other - 6-SMD_2025-1.1
click to zoom

530BB125M000DG Details

  • Manufacturer Part Number:

    530BB125M000DG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SMD, 6 PIN

  • Country Of Origin:

    Taiwan

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    6

  • Additional Feature:

    TRAY

  • Fall Time-Max:

    0.35 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    20%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    945 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Frequency-Nom:

    125 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    DILCC6,.2

  • Physical Dimension:

    7.0mm x 5.0mm x 1.85mm

  • Qualification Status:

    Not Qualified

  • Rise Time-Max:

    0.35 ns

  • Supply Current-Max:

    98 mA

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier
