570GAC000112DGR - Skyworks

Description: Programmable Oscillators Differential/single-ended; I2C programmable XO; OE pin 2; 10-1417 MHz

Download 570GAC000112DGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

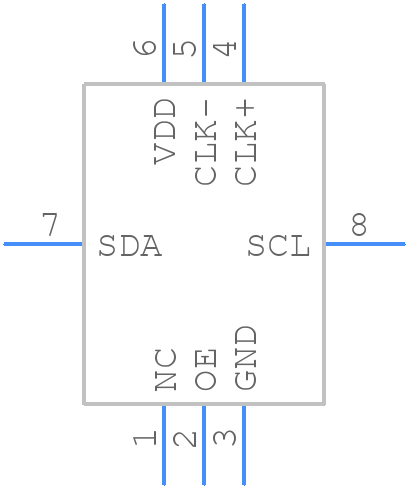

Symbol
570GAC000112DGR - Skyworks - PCB symbol
click to zoom
PCB Footprints
570GAC000112DGR - Skyworks PCB footprint - Other - Other - 570GAC000112DGR-3
click to zoom
3D Models
570GAC000112DGR - Skyworks - 3D model - Other - 570GAC000112DGR-3
click to zoom

570GAC000112DGR Details

  • Manufacturer Part Number:

    570GAC000112DGR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    5

  • Additional Feature:

    TRI-STATE; ENABLE/DISABLE FUNCTION

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    7%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    160 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    15 pF

  • Output Low Current-Max:

    32 mA

  • Package Equivalence Code:

    LCC8,.2X.28,100

  • Physical Dimension:

    7.0mm x 5.0mm x 1.8mm

  • Screening Level:

    MIL-STD-883

  • Supply Current-Max:

    98 mA

  • Supply Voltage-Max:

    2.75 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

570GAC000112DGR Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the Skyworks Solutions Inc. application note AN-20060, which provides guidelines for designing a PCB layout that minimizes parasitic inductance and ensures optimal performance.
  • The 570GAC000112DGR requires a specific biasing scheme to operate optimally. Refer to the Skyworks Solutions Inc. application note AN-20060, which provides detailed information on biasing and tuning the device for optimal performance.
  • The maximum power handling capability of the 570GAC000112DGR is not explicitly stated in the datasheet. However, according to Skyworks Solutions Inc., the device is designed to handle up to 2W of RF power. It is recommended to consult with Skyworks Solutions Inc. or a qualified RF engineer to determine the maximum power handling capability for a specific application.
  • Troubleshooting common issues with the 570GAC000112DGR requires a systematic approach. Start by verifying the device is properly biased and the PCB layout is correct. Check for any signs of damage or overheating. Consult the Skyworks Solutions Inc. application note AN-20060 for troubleshooting guidelines and contact Skyworks Solutions Inc. support for further assistance if needed.
  • Yes, the 570GAC000112DGR has specific thermal management requirements. The device has a maximum junction temperature of 150°C, and it is recommended to keep the case temperature below 85°C for optimal performance and reliability. A heat sink or thermal pad may be required to ensure proper heat dissipation, depending on the application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

570GAC000112DGR Overview

Use the download button to access the 570GAC000112DGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 570GA, or try a keyword search, such as XO
