Part Image

5745782-6 - TE Connectivity

Description: Body Features: Mating Feature Material Zinc | Mating Feature Plating Material Clear Chromate | Connector Profile Standard | Insert Material Zinc | Shell Plating Material Tin | Configuration Features: Number of Rows 2 | Number of Positions 15 | PCB Mount Orientation Right Angle | Contact Features: Contact Mating Area Plating Material Gold | PCB Contact Termination Area Plating Material Tin | Contact Current Rating (Max) 6 AMP | Contact Base Material Phosphor Bronze | Contact Shape & Form Round | Contact Mati

Download 5745782-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5745782-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

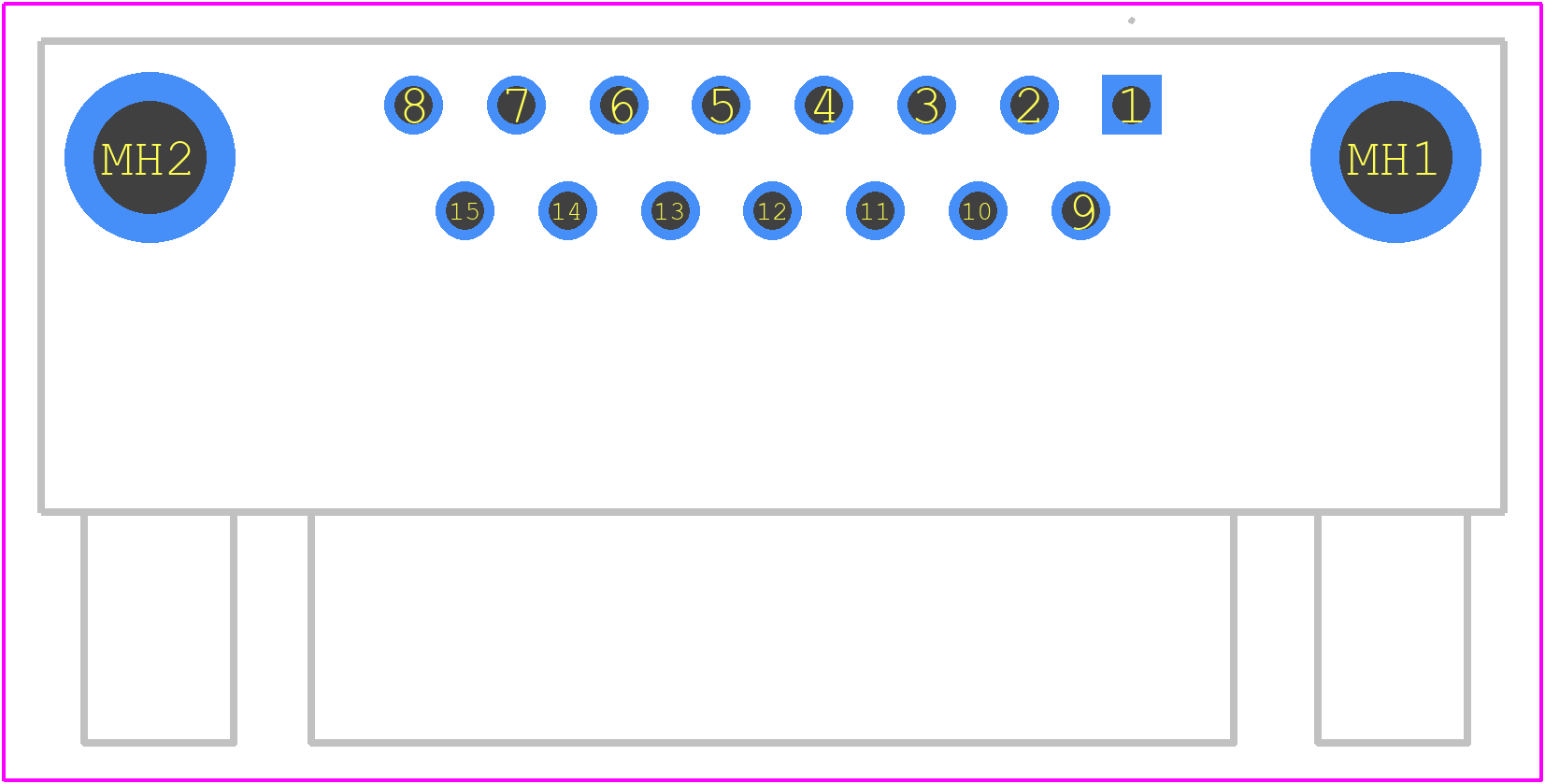

5745782-6 - TE Connectivity PCB footprint - Other - Other - 5745782-6-2
click to zoom
3D Models
5745782-6 - TE Connectivity - 3D model - Other - 5745782-6-2
click to zoom

5745782-6 Details

  • Manufacturer Part Number:

    5745782-6

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.18

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    6A

  • Mating Contact Row Spacing:

    0.112 inch

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    SCREWLOCKS

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    6 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    ZINC ALLOY

  • Shell Size:

    2/A

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.74 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

5745782-6 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 5745782-6 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 5745782-6 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 5745782-6 connector has a sealed design, making it suitable for outdoor or harsh environmental applications. However, it's crucial to ensure proper sealing and protection from moisture, dust, and other environmental factors.
  • Yes, the 5745782-6 connector is designed to be compatible with other TE Connectivity products and some third-party components. However, it's essential to verify compatibility and consult TE Connectivity's documentation or support for specific guidance.
