5787395-5 - TE Connectivity

Description: Body Features: Connector Profile Standard | Shell Plating Finish Bright | Shell Plating Material Nickel over Copper | Primary Product Color Black | Assembly Process Feature Material Copper Alloy | Configuration Features: Number of Rows 2 | PCB Mount Orientation Right Angle | Number of Positions 50 | Contact Features: PCB Contact Termination Area Plating Material Tin over Nickel | Contact Mating Area Plating Material Thickness 30 MICIN | Contact Base Material Phosphor Bronze | Contact Underplating Material P

Download 5787395-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5787395-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

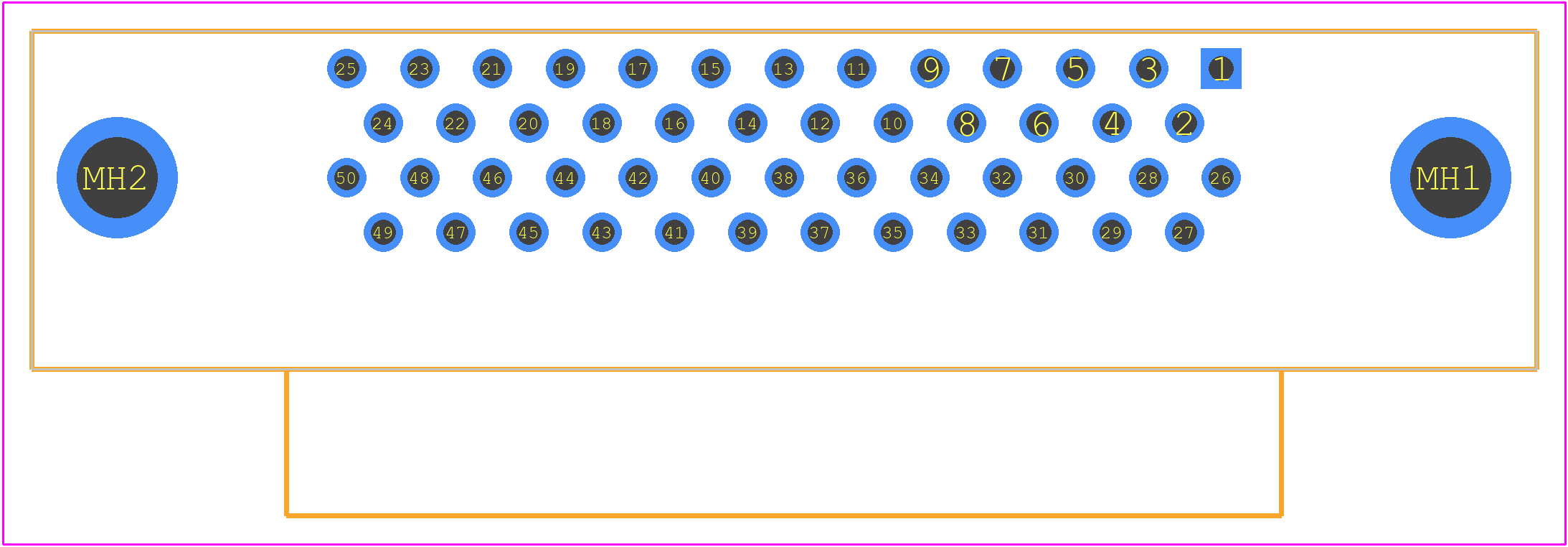

5787395-5 - TE Connectivity PCB footprint - Other - Other - 5787395-5-2
click to zoom
3D Models
5787395-5 - TE Connectivity - 3D model - Other - 5787395-5-2
click to zoom

5787395-5 Details

  • Manufacturer Part Number:

    5787395-5

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    11 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.5

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Gender:

    FEMALE

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Mixed Contacts:

    NO

  • Number Of Connectors:

    ONE

  • Rated Current (Signal):

    1 A

  • Total Number of Contacts:

    50
